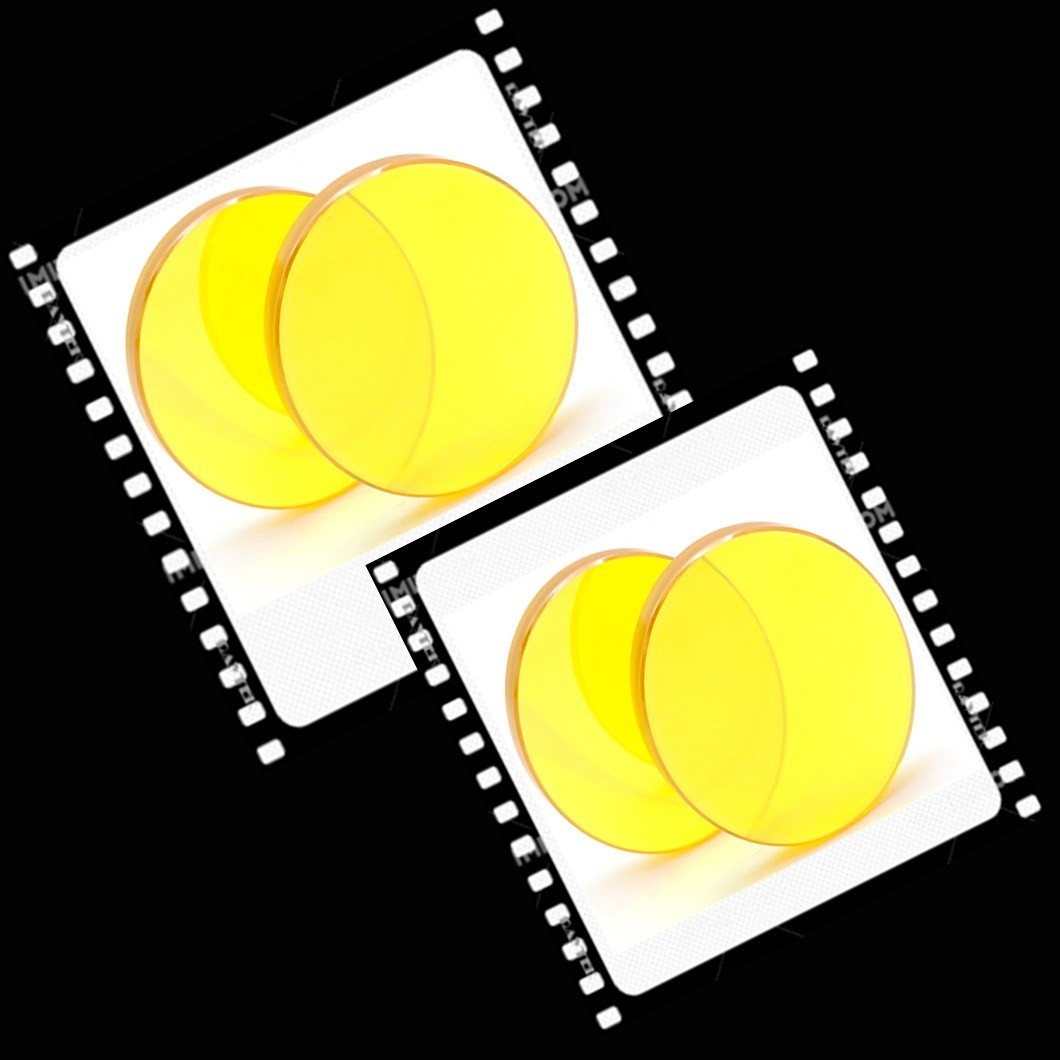

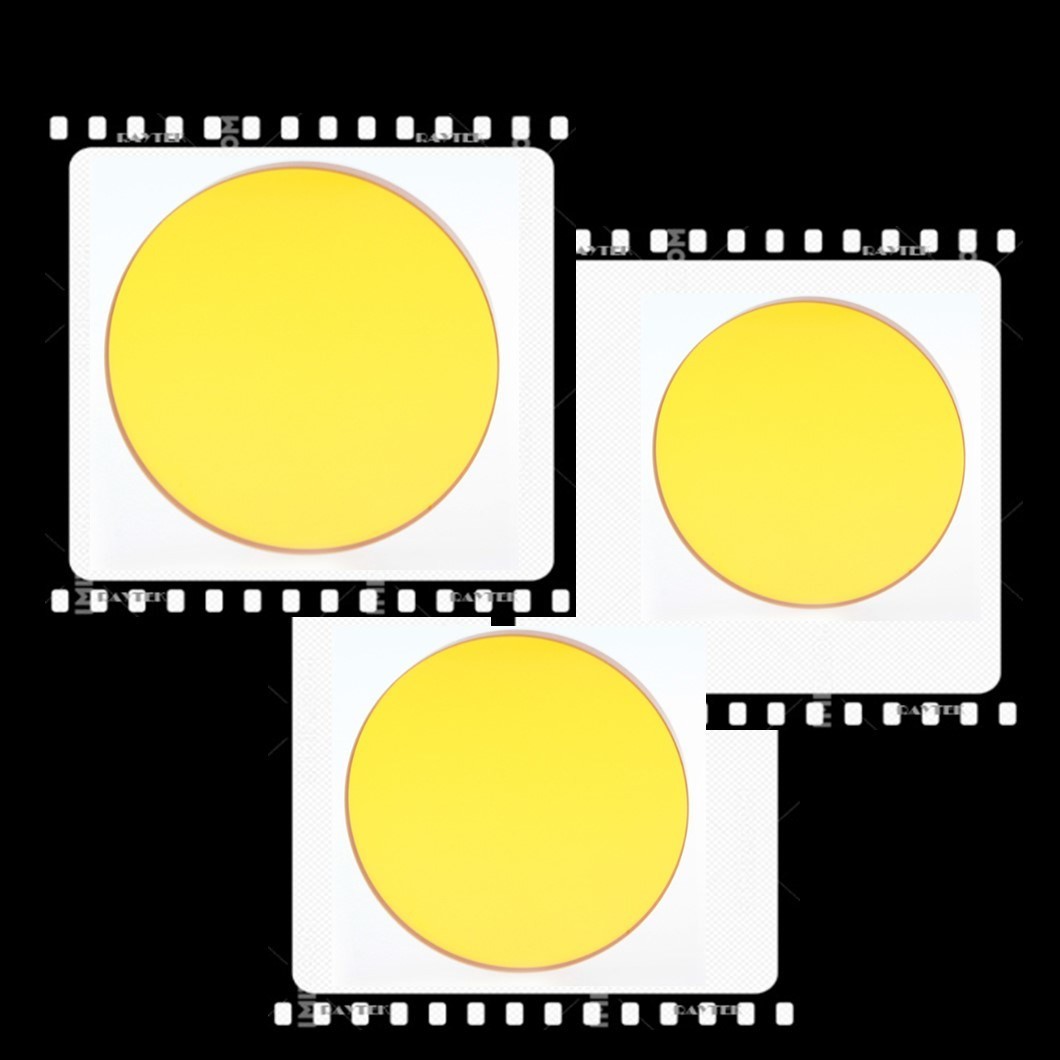

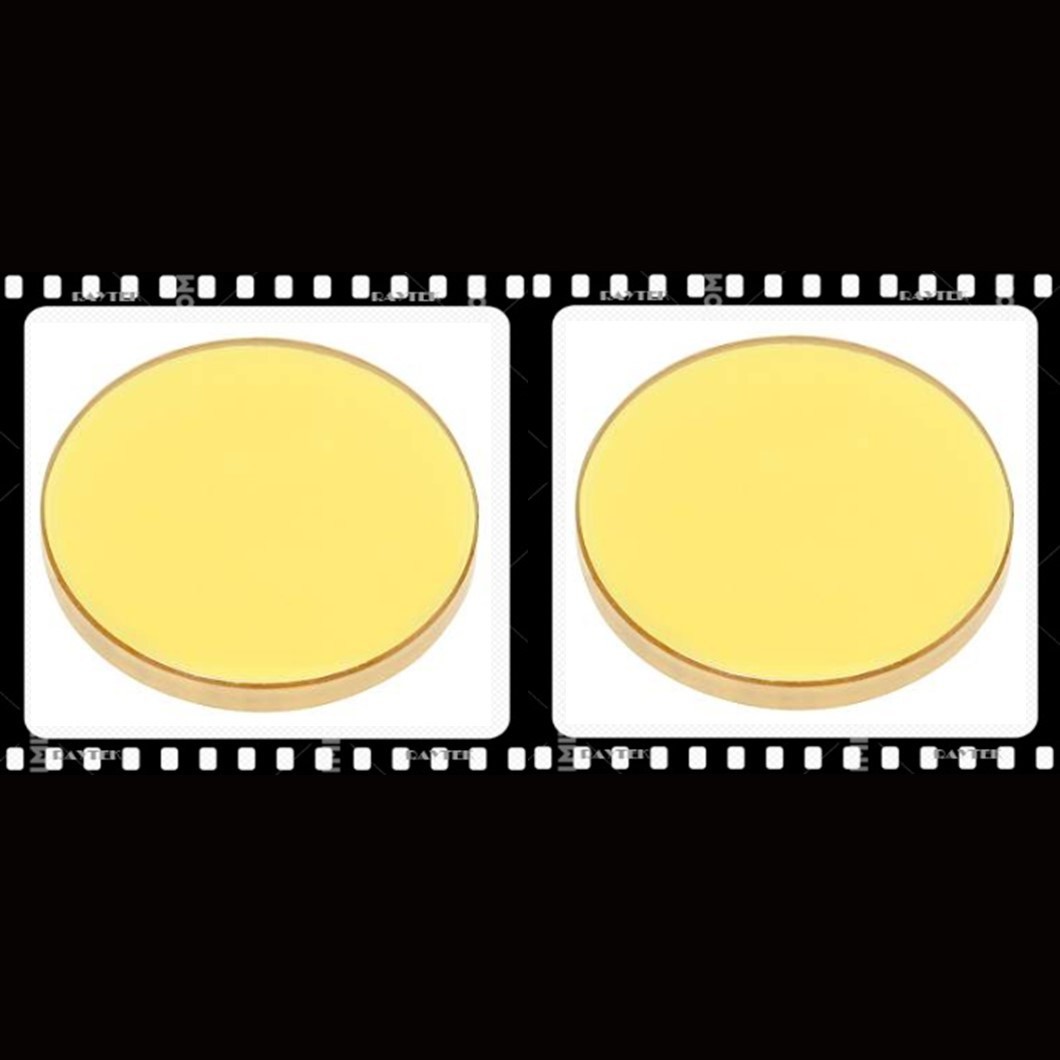

Home Znse Plano-Convex CO2 Laser Lens
| Optional I: |
ZnSe(zinc selenide) from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
| Optional II: |
Equivalent ZnSe(zinc selenide) Made in China, C-laser own brands |
AR. Coating:
Rautel antireflective coating.
Main Applying:
| Applying Fields I: | CO2 laser |
| Applying Fields II: |
Focus, collect and collimate light Focusing and collimating laser beam Collimating the optical fiber output |
| Appling Fields III: | Other |
Main Optical Tech Specification:
| Lens Shape | Plano-Convex |
Surface Accuracy Irregularity |
- 0.5 Fringe @ 0.633 µm |
| Lens Material | Zinc Selenide (ZnSe) | Surface Figure | - 2 Fringes @ 0.633 µm |
| Antireflection Coating | Raytek | Reflectivity | - <0.2% |
| Coating Type | - | Edge Thickness Tolerance | -±0.1 mm |
| Coating Code | - | Diameter Tolerance | - +0.0/-0.1 mm |

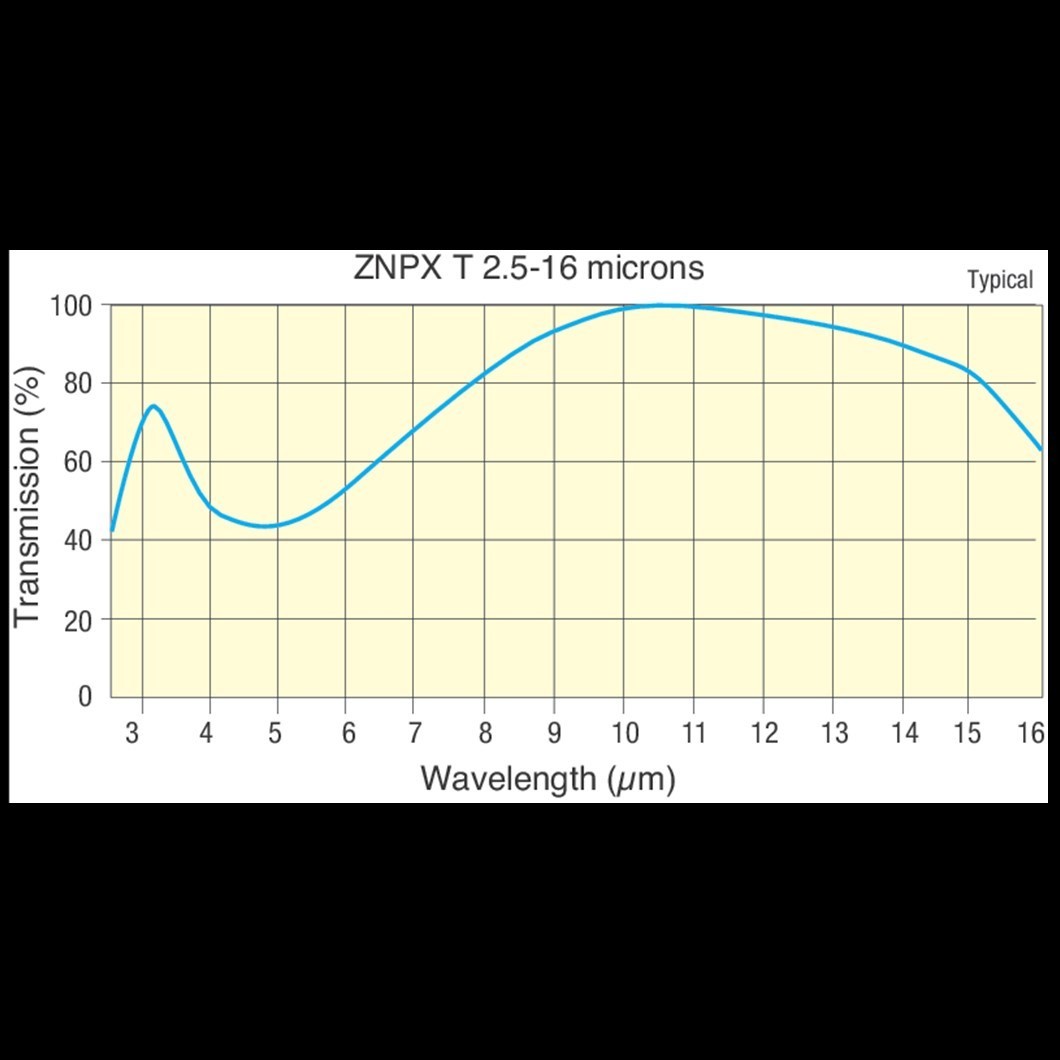

| Transmission | - >99.3% | Centration | ≤3 arc min |
| Absorption | <0.20% | Clear Aperture |
≥central 90% of diameter |
| Surface Flatness | - | OEM/ODM |
Accepted |
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
