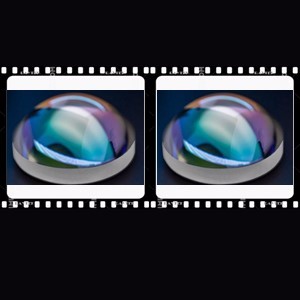

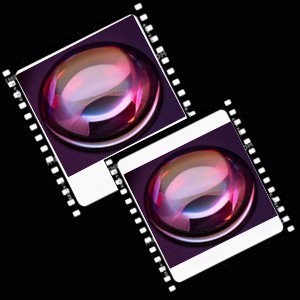

NIR Coated UV Fused Silica Plano-Convex Lens

General Introduction: Raytek's 650-1000 nm antireflection coating of UV grade fused silica Plano convex lens is used to meet the stringent requirements of laser electro-optic focusing. The master test plate is polished to achieve tight tolerances to ensure minimum wavefront distortion. Strict surface quality tolerance minimizes scattering and harmful diffraction effects



Products Name: NIR Antireflection Coated UV Fused Silica Plano-Convex Lens

Alias: NIR coated uv fused silica plano-convex lens, NIR coated fused silica plano-convex lens, NIR coated fused silica lens,Near-IR fused silica lens, Near-IR fused silica plano-convex lens, NIR AR coated Lens, NIR fused silica lens, etc



Lens Substrates:

UV fused silica substrate for UV region, laser line and wide band applications

UV fused silica is a synthetic amorphous silica with high purity, which can provide the maximum transmission from 195 nm to 2100 nm. The amorphous and colorless quartz glass has very low thermal expansion coefficient, good optical properties and excellent transmittance in the ultraviolet region. The transmittance and uniformity are higher than that of crystal quartz, and there is no inherent orientation and temperature instability of crystal form. It does not fluoresce under ultraviolet light and is radiation resistant. For high energy applications, the high purity of fused silica eliminates the micro defects that may cause laser damage. For more information, please refer to the summary of optical materials technology.es

Optional I:	UV fused silica from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC
Optional II:	Equivalent UV fused silica Made in China, C-laser own brands

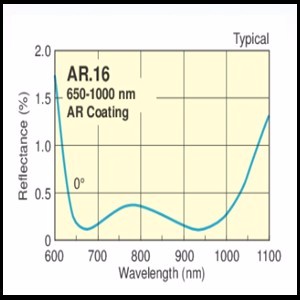

Raytek Broadband multilayer Near Infrared Antireflection film:

Raytek’s AR.16 broadband antireflection films improve the transmittance of these lenses by reducing surface reflection in the range of 650-1000 nm. The performance of the uncoated surface can be improved by near infrared multilayer antireflection. For 1064 nm, 10 Hz 10ns laser pulse, the damage threshold is 7.5 j/cm2.



Main Applying:

Applying Fields I:	Laser electrooptic focusing
Applying Fields II:	Collimating laser beam for laser equipment Collimating the optical fiber output
Appling Fields III:	Other



Products Highlights:

1).650-1000 nm antireflective coatings

2).UV grade fused silica substrate

3).Surface irregularity<=λ/8, scratch-dig is 20-10

4).Standard focal length suitable for various lens sizes

5).Different grades materials for option.

6).High precision & high surface roughness;

7).Sizes can be customized as per the customers’ request

8).Quick lead time and delivery time.

9).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.

10).Excellent post-sale quality warranty, with “3R”-return, replace & refund policy



Main Optical Tech Specification:

Lens Shape	Plano-Convex	Surface Accuracy Irregularity	λ/8
Lens Material	UV Fused Silica	Surface Accuracy, Power	1.5 λ
Antireflection Coating	650-1000 nm	Chamfers	0–0.8 mm face width
Coating Type	NIR Multilayer	Chamfers Angle/Tolerance	45° ±15°, typical
Coating Code	AR.16	Focal Length Tolerance	±1 %
Damage Threshold	7.5 J/cm2, 10 ns pulses, 10 Hz at 1064 nm	Diameter Tolerance	+0/-0.1 mm
Surface Quality	20-10 scratch-dig	Clear Aperture	≥central 90% of diameter
Surface Flatness	λ/8	OEM/ODM	Accepted



Main Physical Size Specification:

Products Code	Diameters	EFL	AR.film Wavelength
RT01031001	6.35mm	12.7mm	650-1000 nm
RT01031002	12.7mm	16.0mm	650-1000 nm
RT01031003	12.7mm	19.0mm	650-1000 nm
RT01031004	12.7mm	25.4mm	650-1000 nm
RT01031005	12.7mm	38.1mm	650-1000 nm
RT01031006	12.7mm	50.2mm	650-1000 nm
RT01031007	12.7mm	75.6mm	650-1000 nm
RT01031008	12.7mm	25.4mm	650-1000 nm
RT01031009	25.4mm	33.0mm	650-1000 nm
RT010310010	25.4mm	38.1mm	650-1000 nm
RT010310011	25.4mm	50.2mm	650-1000 nm
RT010310012	25.4mm	62.9mm	650-1000 nm
RT010310013	25.4mm	75.6mm	650-1000 nm
RT010310014	25.4mm	88.3mm	650-1000 nm
RT010310015	25.4mm	100mm	650-1000 nm
RT010310016	25.4mm	125mm	650-1000 nm
RT010310017	25.4mm	150mm	650-1000 nm
RT010310018	25.4mm	175mm	650-1000 nm
RT010310019	25.4mm	200mm	650-1000 nm
RT010310020	25.4mm	350mm	650-1000 nm
RT010310021	25.4mm	500mm	650-1000 nm
RT010310022	25.4mm	750mm	650-1000 nm
RT010310023	25.4mm	1000mm	650-1000 nm
RT010310024	50.8mm	75.6mm	650-1000 nm
RT010310025	50.8mm	100mm	650-1000 nm
RT010310026	50.8mm	150mm	650-1000 nm
RT010310027	50.8mm	200mm	650-1000 nm
RT010310028	50.8mm	250mm	650-1000 nm
RT010310029	50.8mm	300mm	650-1000 nm
RT010310030	50.8mm	500mm	650-1000 nm
	Custom	Custom	Custom



Other Available Lens Substrates:

UV fused quartz,Molded glass,Fused silicon glass,N-BK7,K9,K7,B270,D-LAK,D-ZK3,D-ZLaF52LA18

D-ZLaF52La9,ECO5508,L-BAL 35 (589/611)48,7980/7979/7972/7973/SQ0/1/8655/SK1300/1310

NIFS/BK7/N-SF6/N-SSK/SBL7/Zerodur/CaF2/SIC,et



Main Cooperation Materials Manufacturers:

CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC

Main Export Countries & Areas: Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.



Raytekoptics Extra value added services offered:

1). Optical workcraft & process solution design;

2). Rough processing raw materials;

3). Semi finishing raw materials;

4). Fabricate custom sizes and shapes;

5). Design and supply custom coatings;

6). Modify and resurface customer supplied materials;

7). Drill holes, notch glass and provide beveled substrates;

8). Precision polish optics with non-standard aspect ratios;



Payment Method: by T/T or Western Union.

Delivery time: 7-10 days.

Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with “3R” policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
