Plano-Convex Cylindrical Lens

Product Item : RT20220417001#
Category：
Substrate: Optical Glass or PMMA or Borosilicate Glass
Coating: Uncoating, Vis, Nir, IR, UV Coating
Surface Finish: 60-40 Scratch-Dig
Size Tolerance: +/-0.1mm

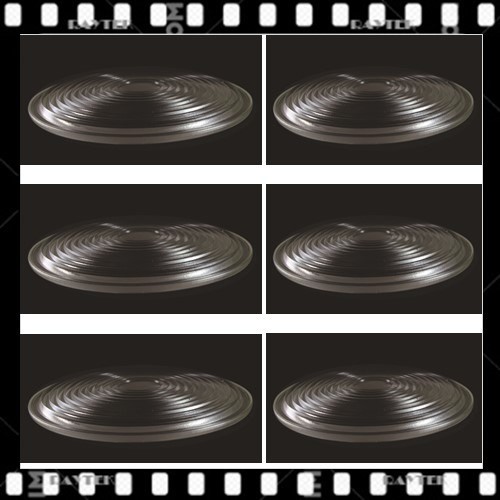

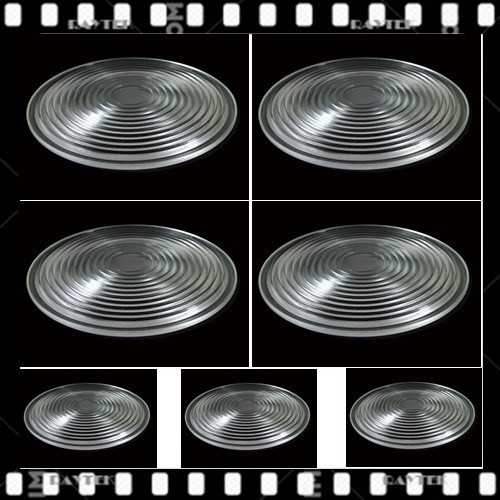

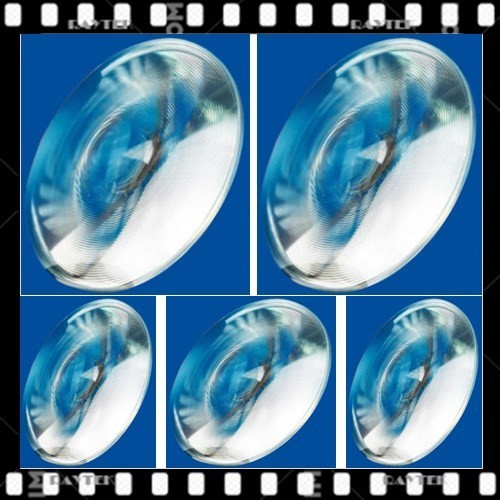

Product description：Fresnel Spiral Lens/Fresnel Lens/Spiral Lens/Laser Spiral Lens/IR Spiral Lens
INQUIRY

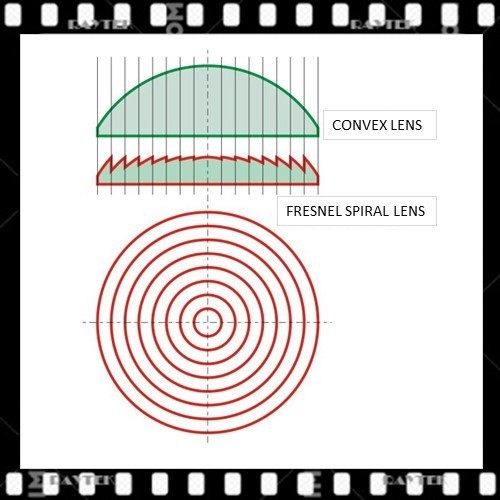

General Introduction: The function of Raytek spiral lens is equivalent to the spotlight in the slide. On the one hand, it can focus the light, on the other hand, it can make the light evenly shine on the projector. Compared with the flat convex lens, the spiral lens has the characteristics of thin thickness, light weight, good light transmission and easy processing. It is usually made of polypropylene or optical glass.

Products Name: Fresnel Spiral Lens/Fresnel Lens/Spiral Lens/Laser Spiral Lens/IR Spiral Lens
Alias:Infrared spiral lens, IR spiral lens, Laser spiral lens, Fresnel lens, Soft light spiral lens, photography light spiral lens, Projector spiral lens, etc

Main Applying:

Applying 1	Laser systems
Applying 2	Infrared systems and infrared detectors and alarming system
Applying 3	Photovoltaic cells system
Applying 4	Navigation lighting system

Main Technical Data:

Technical Data	Description & Value
Substrate	Optical glass PMMA Borosilicate glass
Size Tolerance	+/-0.1mm
Central Thickness Tolerance	+/-0.1mm
Popular Standard Size	5-500mm, or customize as per demand
Surface Finish	60-40 scratch-dig
Effective Aperture	More than 90%
Coating	Uncoating/VVis, NIR, IR, UV coating

Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,J-FIBER,ETC

Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.

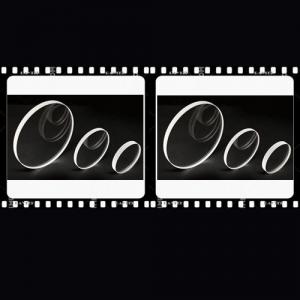

PREVIOUS：N-Bk7 Parallel Window NEXT：Znse Plano-Convex CO2 Laser Lens
