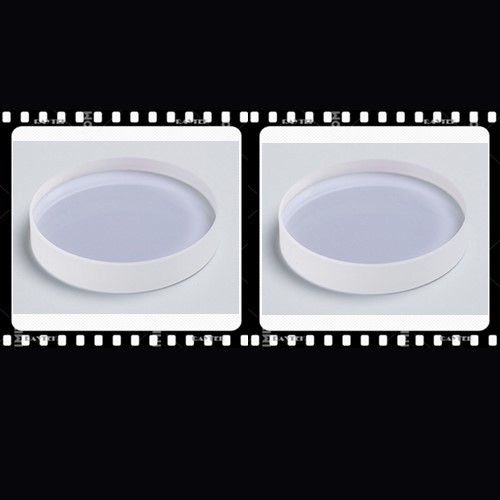

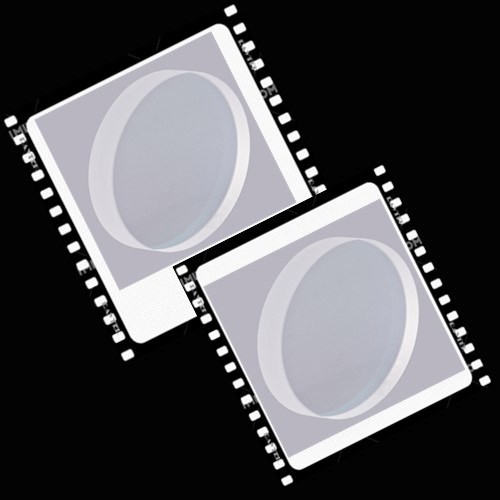

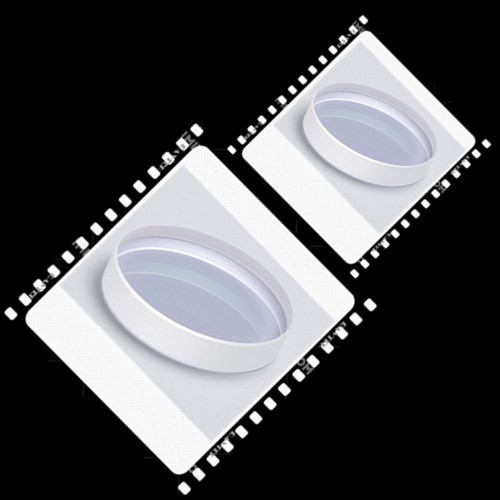

Laser Line Optical Windows

Product Item : RT20220419001#
Category：
Substrate: Excimer Grade UV Fused Silica
Coating: Laser Line V Coating
Surface Quality: 10-5 Scratch-Dig or Custom Manufacturing
Surface Flatness: Lambda/10 @ 632.8nm
Product description：Laser Line Optical Windows/Laser Line Windows/Laser Window/Laser Protection Window/Laser Lens
INQUIRY

General Introduction: The Raytek high-energy parallel window is made of low scattering excimer level UV fused silica, and the high-energy Nd: YAG laser system is optimized. Each surface of the product is covered with antireflection film with high efficiency and high damage threshold..

Products Name: Laser Line Optical Windows
Alias:Laser Line windows, Laser Line optical lens, Laser line lens, Nd:YAG laser windows, Nd:YAG laser lens, Laser line parallel windows, Laser parallel windows,etc

Lens Substrates:
Excimer Grade UV Fused Silica

Optional I:	Excimer Grade UV Fused Silica from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC
Optional II:	Equivalent Excimer Grade UV Fused Silica Made in China, C-laser own brands

Coating:
The application of Nd: YAG laser is optimized

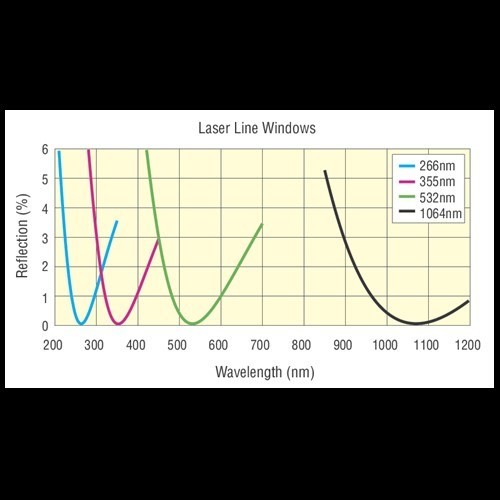

Each surface of our high energy parallel window is coated with a high efficiency, high damage threshold V coating. The coating can be used to maximize the transmission at 1064 nm, 532nm, 355nm and 266nm, corresponding to the first, second, third and fourth harmonic of Nd: YAG laser, respectively.

Main Applying:

Applying Fields I:	Nd:YAG laser system
Applying Fields II:	The first, second, third and fourth harmonic of YAG laser

Main Optical Tech Specification:

Lens Shape	Optical Parallel Window	Surface Accuracy Irregularity	-
Lens Material	Excimer Grade UV Fused Silica	Diameter Tolerance	-
Coating	Laser Line V coating	Angle of incidence	00
Coating Type	-	Thickness	3.0mm
Damage Threshold	-	Dia. Tolerance	+0/-0.10 mm
Thickness Tolerance	±0.10 mm	Parallelism	5 arc seconds
Surface Quality	10-5cratch-dig	Clear Aperture	Central 90% of diameter
Surface Flatness	λ/10 @ 632.8nm	OEM/ODM	Accepted

Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC

Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
