Schott Optical Sapphire

Product Item : RT20220330001#
Category：
0.1 to 0.2 Cm(-1) (0.66 Micron,1600celsuis)
D2000mm*(H)300mm
0.1 (1600 Celsuis Degree)
Uniaxial Negative;No = 1.768 Ne = 1.760
Product description：Schott Sapphire, Schott Sapphire windows, Schott Sapphire materials, Sapphire optical materials, etc
INQUIRY

General Introduction: Schott Sapphire, as one of the hardest, most durable and scratch resistant materials, offers a broad transmission range from UV to mid infrared wavelengths (250 - 5000 nm). The material is able to withstand extreme environmental conditions and temperature changes. SCHOTT offers sapphire materials, Raytek offers the machining process in different supply forms, dimensions, and in customized processing stages.

Products Name: Schott Sapphire
Alias: Schott Sapphire, Schott Sapphire windows, Schott Sapphire materials, Sapphire optical materials, etc

Main Characteristics:

1).Extreme hardness & high mechanical strength (withstands extreme environmental conditions)

2).Excellent thermal conductivity/heat resistance

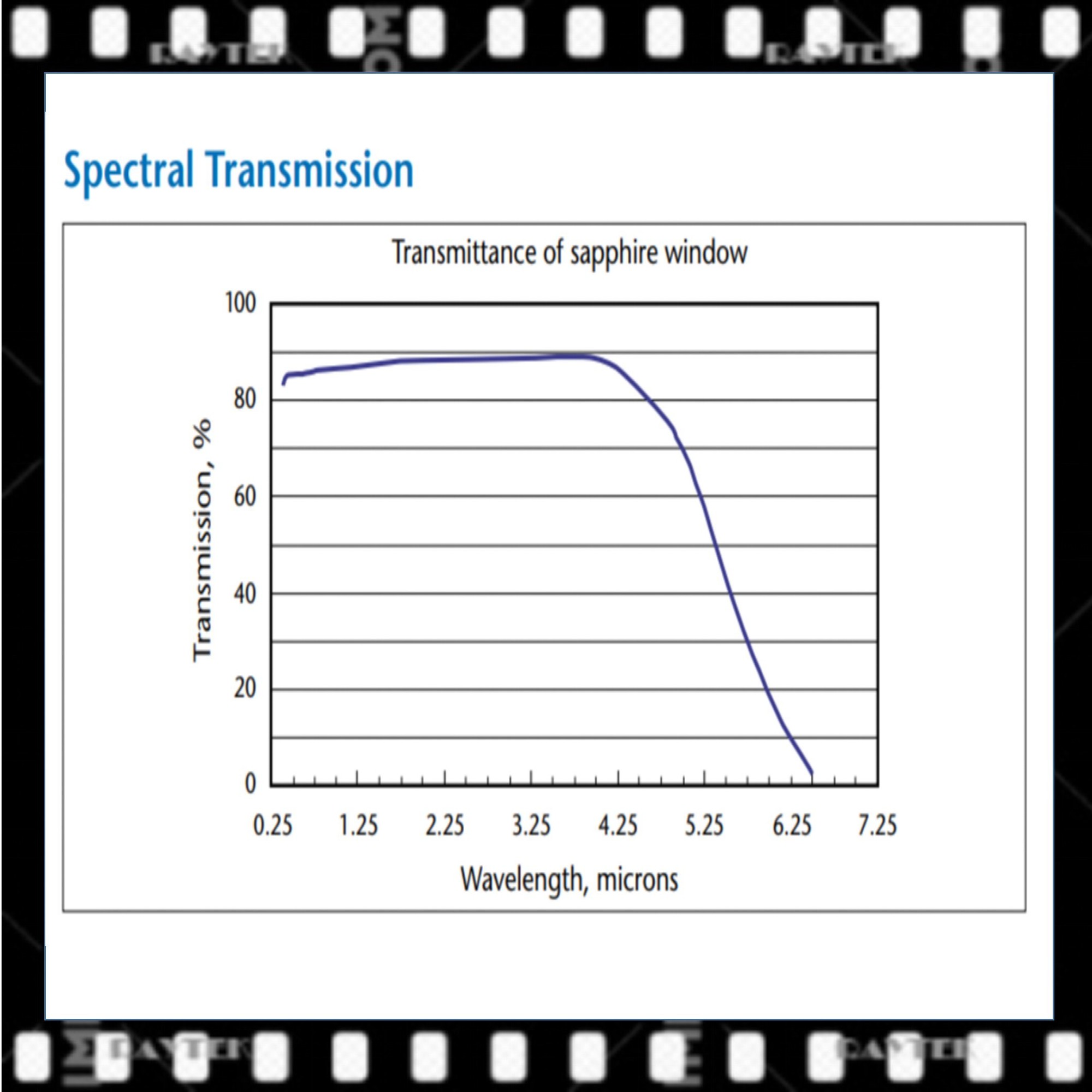

3).High transmittance (UV to IR)

4).Low dn/dT

5).High electrical resistance (1014 Ohm x cm)

6).High dielectric constant (9.39 from 1.0 MHz to 8.5 GHz)

Mechanical Properties:

Items	Value	Value
Tensile strength	40,000 - 60,000 psi (design criterion)	0.27 - 0.41 GPa
Flexural strength	70,000 -130,000 psi (design criterion)	0.48 - 0.89 GPa
Young's Modulus, E (25 °C) (Modulus of Elasticity)	50 x 106 psi	345 GPa
Compressive Modulus, K	55 x 106 psi	379 GPa
Flexural Modulus (Modulus of Rupture)	52 x 106 psi	358 GPa
Shear Modulus, G (Modulus of Rigidity)	21.5 x 106 psi	148 GPa
Bulk Modulus, k (Volumetric Modulus of Elasticity) Poisson's Ratio	35 x 106 psi 0.29	241 GPa

Optical Properties:

Items	Value
Uniaxial Negative	no = 1.768 ne = 1.760
Birefringence	0.008
dn/dt (0.6 µm)	13 x 10-6/°C (visible range)
Spectral Emittance	0.1 (1600 °C)
Spectral Absorption Coefficient	0.1 to 0.2 cm-1 (0.66 micron, 1600 °C)
Electrical Volume Resistivity	1016 Ohm x cm (25 °C) 1011 Ohm x cm (500 °C) 106 Ohm x cm (1000 °C)
Dielectric Strength	480,000 volts/cm (1,200 volts/mil)
Dielectric Constant	11.5 (103 to 109 Hz, 25 °C) parallel to c-axis 9.3 (103 to 109 Hz, 25 °C) perpendicular to c-axis
Loss Tangent	8.6 x 10-5 (@1010 Hz, 25 °C) parallel to c-axis 3.0 x 10-5 (@1010 Hz, 25 °C) perpendicular to c-axis
Magnetic Susceptibility	- 0.21 x 10-6 parallel to c-axis - 0.25 x 10-6 perpendicular to c-axis

Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC

Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy--return, replace & refund policy.
For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund
