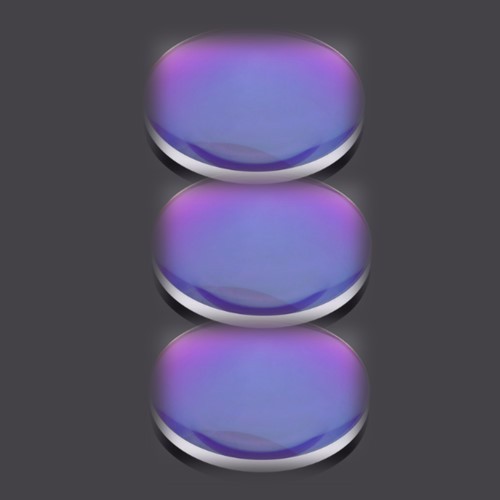

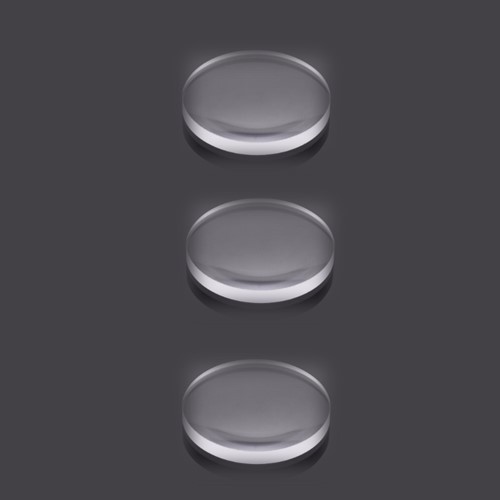

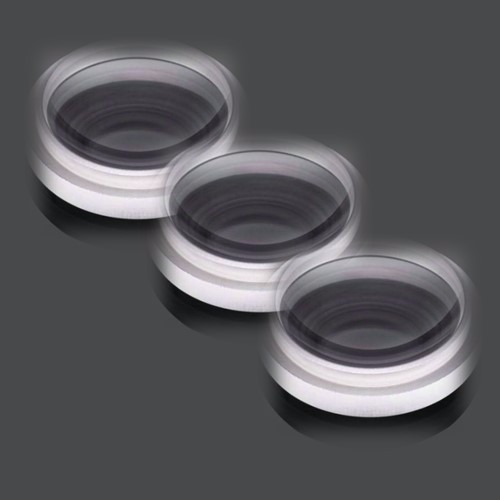

Near-UV (NUV) Achromatic Lens

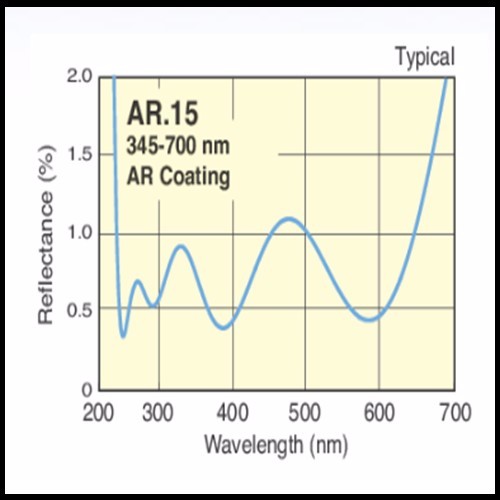

General Introduction: Ultraviolet achromatic lens is an air gap achromatic double lens. A piece of fused silica (CaF2) used in laser applications consists of an excimer glass. The two materials have good transmittance at UV wavelength and different dispersion characteristics, so the chromatic aberration and spherical aberration are corrected. For an ideal Gaussian beam, the focal spot diameter and diffraction limit size of the lens with F number ≥ 5 are the same. Through special design, this product can reduce the spot size of 345-700nm multi-color lighting, and can be used for fluorescence, as well as the focusing of ordinary UV light sources, such as mercury arc lamp, UV LED lamp and triple Nd: YAG laser. This series of achromatic lenses adopt glued design, which is an excellent alternative to the UV air gap and triple glued lenses. The transmittance of the lens is more than 90% at 360nm and more than 50% at 334nm.

Products Name: Near-UV (NUV) Achromatic Lenses

Alias: NUV Achromatic Lenses, Near-UV achromatic lens, NUV Lens, Near-UV lens

Products Highlights:

1).The transmission performance of 345-700nm band is excellent

2).Suitable for near UV LED lamp and mercury lamp

3).Low cost gluing design

4).High precision & high surface roughness;

5).Sizes can be customized as per the customers’ request

6).Quick lead time and delivery time.

7).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.

8).Excellent post-sale quality warranty, with “3R”-return, replace & refund policy

Main Tech Specification:

Main Cooperation Materials Manufacturers:

CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC

Main Export Countries & Areas: Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.

Raytekoptics Extra value added services offered:

1). Optical workcraft & process solution design;

2). Rough processing raw materials;

3). Semi finishing raw materials;

4). Fabricate custom sizes and shapes;

5). Design and supply custom coatings;

6). Modify and resurface customer supplied materials;

7). Drill holes, notch glass and provide beveled substrates;

8). Precision polish optics with non-standard aspect ratios;

Payment Method: by T/T or Western Union.

Delivery time: 7-10 days.

Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with “3R” policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
