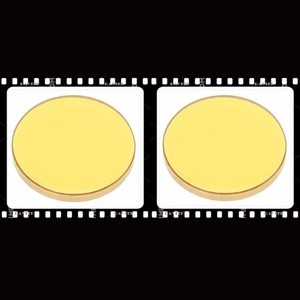

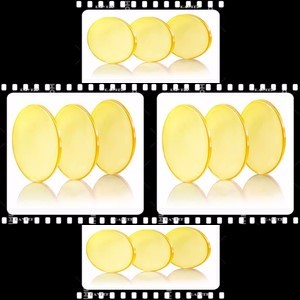

Zinc Selenide Optical Windows

General Introduction: Raytek ZnSe window is an ideal choice for various infrared applications including high power CO2 laser system. ZnSe has low infrared absorption and high thermal shock resistance. However, due to the softness of the material, the window must be handled with care.



Products Name: Zinc Selenide Optical Windows

Alias: Zinc Selenide Optical Windows, Zinc Selenide Windows, Zinc Selenide Optics Windows, Zinc Selenide Laser window, ZnSe Optical windows, ZnSe Parallel Windows, Zinc Selenide Infrared Window, Zinc Selenide IR window, ZnSe Infrared Lens, ZnSe Laser lens, ZnSe Optical lens, Zinc Selenide Optical Lens, etc



Lens Substrates:

Zinc Selenide (ZnSe)



Optional I:	Zinc Selenide (ZnSe) from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC
Optional II:	Equivalent Zinc Selenide (ZnSe) Made in China, C-laser own brands



Coating:

3 to 12μ m Broadband coating

ZnSe has high refractive index, so it needs to be coated with antireflective film to achieve high transmittance. Our broadband AR.20 coating is optimized for 3 to 12μM



Main Applying:

Applying Fields I:	High power CO2 laser system. Infrared thermal imaging equipment
Applying Fields II:	Infrared imaging applications in scientific, military or search and rescue applications.
*****



Products Highlights:

1).It is an ideal choice for high power CO2 laser applications

2).The absorption of infrared radiation is very low

3).Good thermal shock resistance

4).3 to 12aμm Broadband Infrared Antireflective Coatings

5).Soft materials are not recommended for harsh environments

6).Low dispersion and absorption coefficient

7).Suitable for environment with strict heat resistance and demanding

8).Different grades materials for option.

9).High precision & high surface roughness;

10).Sizes can be customized as per the customers’ request

11).Quick lead time and delivery time.

12).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.

13).Excellent post-sale quality warranty, with “3R”-return, replace & refund policy



Main Optical Tech Specification:

Lens Shape	Optical Parallel Window	Surface Accuracy Irregularity	-
Lens Material	CVD Laser Grade ZnSe(Zinc Selenide)	Diameter Tolerance	10ZS: ±0.2 mm ZNW: +0.0/-0.1 mm
Antireflection Coating	3 to 12μm Broadband coating	Thermal Expansion Coefficient	7.1 x 10-6 K-1 @ 273 K
Coating Type	-	Thermal Limit	18 W m-1 K-1 @ 300 K
Damage Threshold	-	Wavelength Range	-
Thickness Tolerance	-	Wedge	-
Surface Quality	40-20cratch-dig	Clear Aperture	10ZS: central 85% of diameter ZNW: central 90% of diameter
Surface Flatness	λ/20 @ 10.6 µm	OEM/ODM	Accepted



Popular Physical Size Specification:



Basic Data	Value
Popular Dia.Value I	12.7mm/25.4mm/50.8mm,etc
Matching Thickness I	2.0mm/3.0mm
Surface Flatness I	λ/20 @ 10.6 µm
Parallelism(Wedge) I	≤3 arc min;
AR. Coating Model I	Uncoated
Popular Dia.Value II	12.5mm/15.0mm/25.0mm 30.0mm/40.0mm/50.0mm/75.00mm,etc
Matching Thickness II	2.0mm/3.0mm/4.00mm/6.00mm,etc
Surface Flatness II	λ/2 at 632.8nm
Parallelism II	≤1arc min;
AR.Coating Model II	3-12um
Other Size Speicification	Custom manufacturing as per demand



Main Cooperation Materials Manufacturers:

CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC



Main Export Countries & Areas:

Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.



Raytekoptics Extra value added services offered:

1). Optical workcraft & process solution design;

2). Rough processing raw materials;

3). Semi finishing raw materials;

4). Fabricate custom sizes and shapes;

5). Design and supply custom coatings;

6). Modify and resurface customer supplied materials;

7). Drill holes, notch glass and provide beveled substrates;

8). Precision polish optics with non-standard aspect ratios;



Payment Method: by T/T or Western Union.

Delivery time: 7-10 days.

Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with “3R” policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
