Sapphire Optical Window

General Introduction: Raytek's uncoated sapphire window is suitable for harsh conditions, including high temperature, high pressure, strong vacuum or corrosive environments. Sapphire has high compressive strength and strong acid resistance.

Unique characteristics of sapphire materials

Sapphire is a single crystal form of alumina, which has good chemical, mechanical and optical properties. Sapphire is resistant to strong acid corrosion and can be used in corrosive environment. The surface is scratch resistant and wear-resistant, with a Knoop hardness of 1800 parallel to the optical axis (c axis) and 2200 perpendicular to the optical axis.

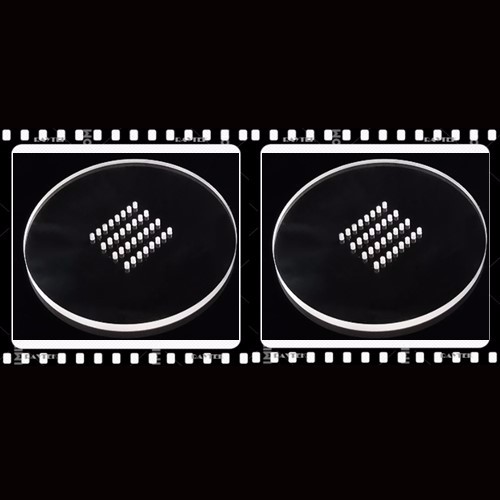

Products Name: Sapphire Parallel Window

Alias: Sapphire Parallel Window, Sapphire Window, Parallel Sapphire Window, Sapphire laser window, Parallel Sapphire window, Sapphire laser protective window, Sapphire protective windows, Laser sapphire windows,etc

Lens Substrates:

Sapphire

Uncoating:

Wide transmission range

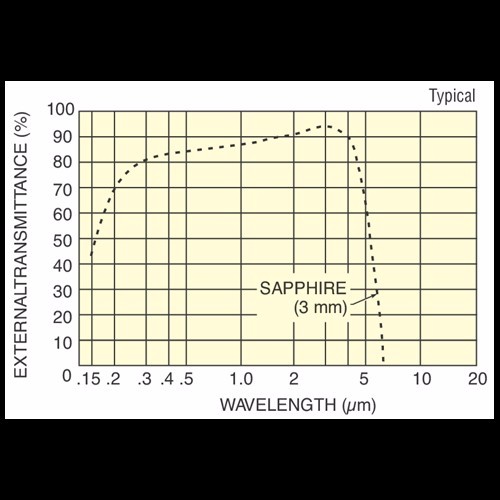

The uncoated sapphire is transparent in a wide wavelength range from 170 nm to 5.5μM

Main Applying:

Products Highlights:

1).Very suitable for high temperature, high pressure or strong vacuum environment

2).Very corrosion resistant

3).The transparent range is 170 nm to 5.5 μM

4).Very hard, more durable than standard optical glass

5).Different grades materials for option.

6).High precision & high surface roughness;

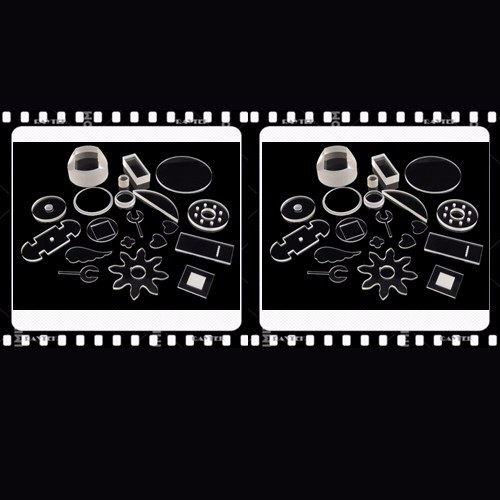

7).Sizes can be customized as per the customers’ request

8).Quick lead time and delivery time.

9).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.

10).Excellent post-sale quality warranty, with “3R”-return, replace & refund policy

Main Optical Tech Specification:

Popular Physical Size Specification:

Main Cooperation Materials Manufacturers:

CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC

Main Export Countries & Areas:

Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.

Raytekoptics Extra value added services offered:

1). Optical workcraft & process solution design;

2). Rough processing raw materials;

3). Semi finishing raw materials;

4). Fabricate custom sizes and shapes;

5). Design and supply custom coatings;

6). Modify and resurface customer supplied materials;

7). Drill holes, notch glass and provide beveled substrates;

8). Precision polish optics with non-standard aspect ratios;

Payment Method: by T/T or Western Union.

Delivery time: 7-10 days.

Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with “3R” policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
