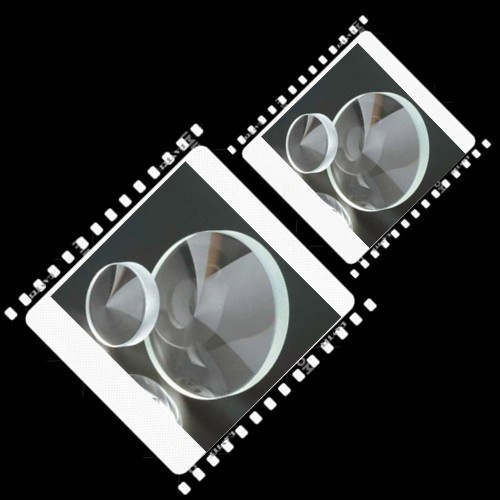

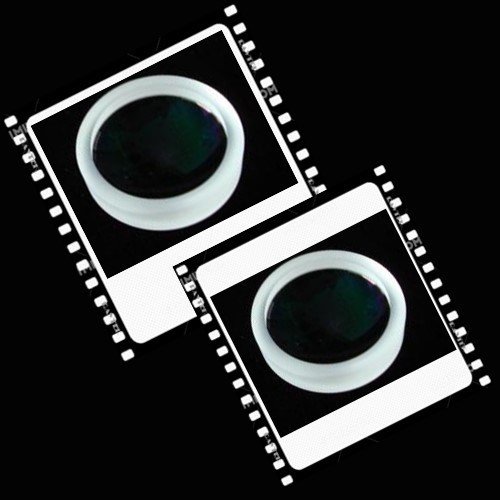

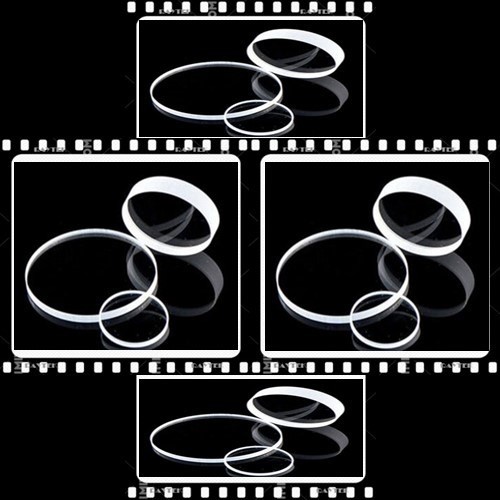

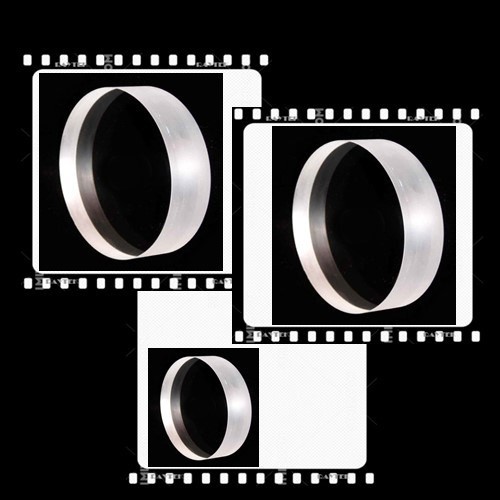

Home Round Broadband Dielectric Mirrors
| Optional I: |
Borofloat 33 from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
| Optional II: |
Equivalent Borofloat 33 Made in China, C-laser own brands |
| Applying Fields I: | Medical device manufacturers |
| Applying Fields II: | General laboratory use |
| ***** |
Main Characters:
1).RS, AVG > 99% in 488-694 nm or 700-950 nm wavelength range
2).Flatness and surface quality of substrate are λ /10, 40-20
3).Applicable diameter: 12.7 mm, 25.4mm
4).Special high damage threshold all media film
5).Ideal choice for medical equipment manufacturers and general laboratory applications
Main Optical Tech Specification:
| Tech Data | Description |
| Wavelength Range | 488-694 nm/700-950 nm |
| Angle of Incidence | 0-45° |
| Coating Type | Dielectric coating |
| Reflectivity |
RS, avg>99%, RP, avg>98% @ 488-694 nm RS, avg>99%, RP, avg>97% @ 700-950 nm; Ravg>80% @ 632.8 nm |
| Damage Threshold |
500 W/cm² CW 3 J/cm² @10 ns, 10 Hz, 532 nm 1000 W/cm² CW 4 J/cm² @10 ns, 10 Hz, 800 nm |
| Material | Borofloat 33 |
| Surface Quality | 40-20 scratch-dig |
| Surface Flatness | λ/10 at 632.8 nm with power removed |
| Clear Aperture | - |
| Chamfers | 0.25-0.76 mm face width |
| Chamfers Angle Tolerance | 45° ±15° |
| Wedge |
- |
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
