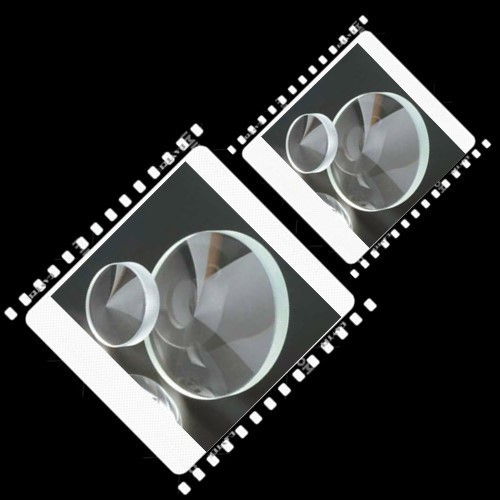

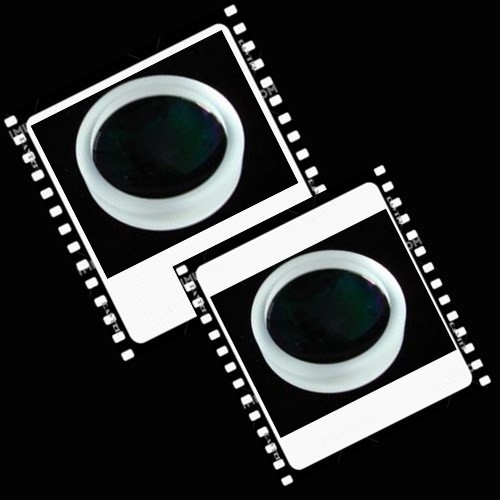

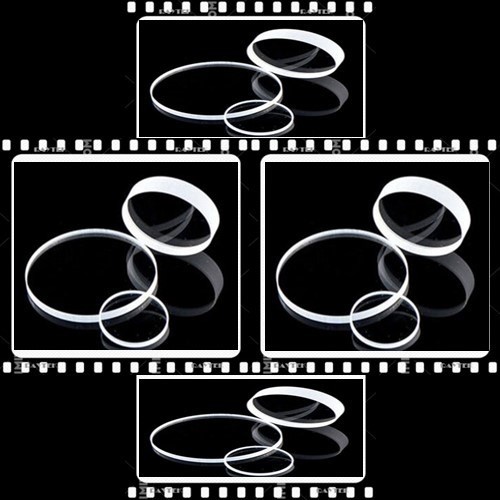

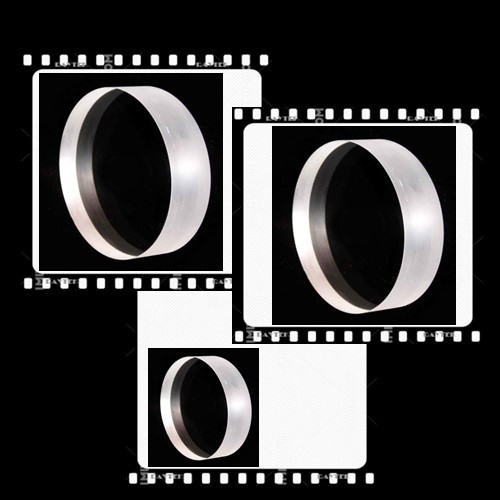

Home Broadband Dielectric Lens
| Optional I: |
Borofloat 33 from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
| Optional II: |
Equivalent Borofloat 33 Made in China, C-laser own brands |
| Applying Fields I: | Medical device manufacturers |
| Applying Fields II: | General laboratory use |
Main Optical Tech Specification:
Tech Data
Description
Wavelength Range
488-694 nm/700-950 nm
Angle of Incidence
0-45°
Coating Type
Dielectric coating
Reflectivity
RS, avg>99%, RP, avg>98% @ 488-694 nm
RS, avg>99%, RP, avg>97% @ 700-950 nm; Ravg>80% @ 632.8 nm
Damage Threshold
500 W/cm² CW
3 J/cm² @10 ns, 10 Hz, 532 nm
1000 W/cm² CW
4 J/cm² @10 ns, 10 Hz, 800 nm
Material
Borofloat 33
Surface Quality
40-20 scratch-dig
Surface Flatness
λ/10 at 632.8 nm with power removed
Clear Aperture
-
Chamfers
0.25-0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Wedge
-
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
