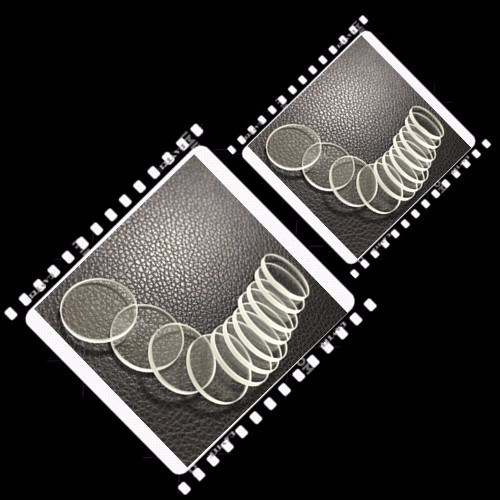

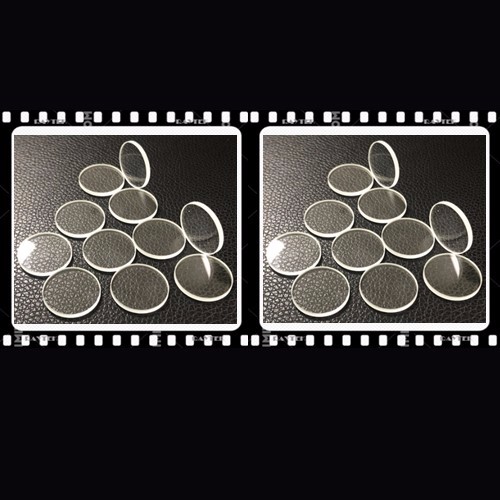

UV Fused Silica Optical Window

General Introduction: Raytek UV fused silica window has low distortion, excellent parallelism, low volume scattering and fine surface quality. This makes them very suitable for a variety of demanding applications, including multiphoton imaging systems and intracavity laser applications..

Products Name: UV fused silica Parallel Window

Alias: UV fused silica Parallel Window, UV fused silica windows, fused silica windows, optical windows, fused silica optical windows, UV fused silica optical windows, etc

Lens Substrates:

UV fused silica

Coating:

Broadband coatings can be used in ultraviolet, visible, near-infrared or infrared applications

There are five antireflective coatings on both sides of the window

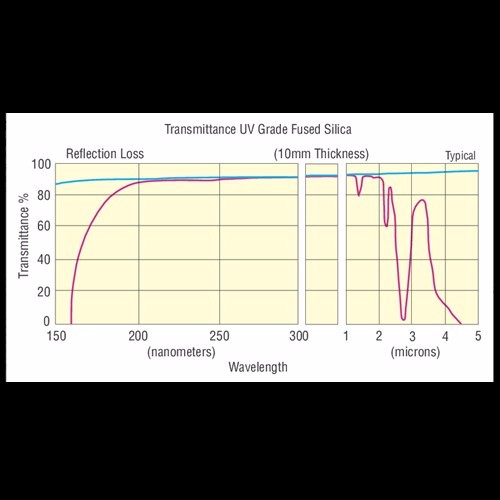

It can cover the spectral range from 245 nm to 1550 nm

Main Applying:

Products Highlights:

1).The volume scattering and spontaneous fluorescence are very low

2).It can be used in the case of high flatness (^/20) or in the case of general flatness (^/10)

3). Arc second parallelism <30

4). Fine low scattering surface up to 10-5 scratch-dig

5).Standard focal length suitable for various lens sizes

6).Different grades materials for option.

7).High precision & high surface roughness;

8).Sizes can be customized as per the customers’ request

9).Quick lead time and delivery time.

10).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.

10).Excellent post-sale quality warranty, with “3R”-return, replace & refund policy

Main Optical Tech Specification:

Main Physical Size Specification:

Main Cooperation Materials Manufacturers:

CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC

Main Export Countries & Areas:

Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.

Raytekoptics Extra value added services offered:

1). Optical workcraft & process solution design;

2). Rough processing raw materials;

3). Semi finishing raw materials;

4). Fabricate custom sizes and shapes;

5). Design and supply custom coatings;

6). Modify and resurface customer supplied materials;

7). Drill holes, notch glass and provide beveled substrates;

8). Precision polish optics with non-standard aspect ratios;

Payment Method: by T/T or Western Union.

Delivery time: 7-10 days.

Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with “3R” policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
