Uncoated UV Fused Silica Plano-Convex Lens

Uncoated UV Fused Silica Plano-Convex Lens

Product Item : RT20210416024#
Category：
Substrate:UV fused quartz
Diameters:6.35mm-76.2mm,or custom
Coating:Uncoating
Unit Price:1USD-10USD per pcs
Product description：Uncoated UV Fused Silica Plano-Convex Lens,Uncoated Lens,Uncoated Plano-convex Lens,Uncoated laser lens, fused silicon lens uncoating, uncoating lens, Uncoating plano-convex lens, fiber laser, co2 las
INQUIRY

General Introduction: Raytek's uncoated UV grade fused silica Plano convex lens is used to meet the stringent requirements of laser electro-optic focusing applications. These lenses are polished using the master test plate to achieve tight tolerances to ensure minimum wavefront distortion. Strict surface quality tolerance minimizes both scattering and harmful diffraction effects.

Products Name: Uncoated UV Fused Silica Plano-Convex Lenses

Alias: Uncoated UV Fused Silica Plano-Convex Lenses,Uncoated UV fused silica plano-convex lens, Uncoated fused silica plano-convex lens, Uncoated fused silica lens,etc.

Lens Substrates:

UV fused silica substrate for UV region, laser line and wide band applications

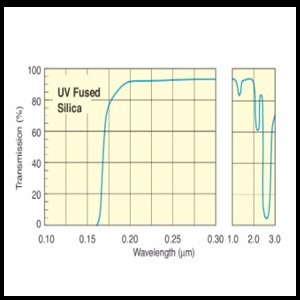

UV fused silica is a synthetic amorphous silica with high purity, which can provide the maximum transmission from 195 nm to 2100 nm. The amorphous and colorless quartz glass has very low thermal expansion coefficient, good optical properties and excellent transmittance in the ultraviolet region. The transmittance and uniformity are higher than that of crystal quartz, and there is no inherent orientation and temperature instability of crystal form. It does not fluoresce under ultraviolet light and is radiation resistant. For high energy applications, the high purity of fused silica eliminates the micro defects that may cause laser damage. For more information, please refer to the summary of optical materials technology.es

Optional I:

UV fused silica

from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC

Optional II:

Equivalent UV fused silica

Made in China, C-laser own brands

Advantages of uncoated lens

Uncoated lenses are used in optical systems and equipment, mainly because they have a very wide wavelength range, high damage threshold ratio, and do not need to be coated, so they are always cheaper than coated lenses. In addition, the uncoated lens makes the image in the camera look more "retro", which is becoming more and more popular in cinema film production.

Main Applying:

Applying Fields I:

Laser electrooptic focusing

Applying Fields II:

Collimating laser beam for laser equipment

Collimating the optical fiber output

Appling Fields III:

Other

Products Highlights:

1).Uncoated planoconvex lens for focusing

2).UV grade fused silica substrate

3).Surface irregularity<=λ/8, scratch less than 0.02mm, pitting less than 0.01mm

4).Standard focal length suitable for various lens sizes

5).Different grades materials for option.

6).High precision & high surface roughness;

7).Sizes can be customized as per the customers’ request

8).Quick lead time and delivery time.

9).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.

10).Excellent post-sale quality warranty, with “3R”-return, replace & refund policy

Main Optical Tech Specification:

Lens Shape	Plano-Convex	Surface Accuracy Irregularity	λ/8
Lens Material	UV Fused Silica	Surface Accuracy, Power	1.5 λ
Antireflection Coating	Uncoating	Chamfers	0–0.8 mm face width
Coating Type	-	Chamfers Angle/Tolerance	45° ±15°, typical
Coating Code	-	Focal Length Tolerance	-
Damage Threshold	-	Diameter Tolerance	-
Surface Quality	20-10 scratch-dig	Clear Aperture	≥central 90% of diameter
Surface Flatness	λ/8	OEM/ODM	Accepted

Main Physical Size Specification:

Products Code	Diameters	EFL	AR.film Wavelength
RT01031201	6.35mm	12.7mm	Uncoating
RT01031202	12.7mm	16.0mm	Uncoating
RT01031203	12.7mm	19.0mm	Uncoating
RT01031204	12.7mm	25.4mm	Uncoating
RT01031205	12.7mm	38.1mm	Uncoating
RT01031206	12.7mm	50.2mm	Uncoating
RT01031207	12.7mm	75.6mm	Uncoating
RT01031208	12.7mm	25.4mm	Uncoating
RT01031209	25.4mm	33.0mm	Uncoating
RT010312010	25.4mm	38.1mm	Uncoating
RT010312011	25.4mm	50.2mm	Uncoating
RT010312012	25.4mm	62.9mm	Uncoating
RT010312013	25.4mm	75.6mm	Uncoating
RT010312014	25.4mm	88.3mm	Uncoating
RT010312015	25.4mm	100mm	Uncoating
RT010312016	25.4mm	125mm	Uncoating
RT010312017	25.4mm	150mm	Uncoating
RT010312018	25.4mm	175mm	Uncoating
RT010312019	25.4mm	200mm	Uncoating
RT010312020	25.4mm	350mm	Uncoating
RT010312021	25.4mm	500mm	Uncoating
RT010312022	25.4mm	750mm	Uncoating
RT010312023	25.4mm	1000mm	Uncoating
RT010312024	50.8mm	75.6mm	Uncoating
RT010312025	50.8mm	100mm	Uncoating
RT010312026	50.8mm	150mm	Uncoating
RT010312027	50.8mm	200mm	Uncoating
RT010312028	50.8mm	250mm	Uncoating
RT010312029	50.8mm	300mm	Uncoating
RT010312030	50.8mm	500mm	Uncoating
RT010312031	38.1mm	50mm (UVFS)	Uncoating
RT010312032	38.1mm	100mm (UVFS)	Uncoating
RT010312033	38.1mm	125mm (UVFS)	Uncoating
RT010312034	38.1mm	150mm (UVFS)	Uncoating
RT010312035	38.1mm	200mm (UVFS)	Uncoating
	Custom	Custom	Custom

Other Available Lens Substrates:

UV fused quartz,Molded glass,Fused silicon glass,N-BK7,K9,K7,B270,D-LAK,D-ZK3,D-ZLaF52LA18

D-ZLaF52La9,ECO5508,L-BAL 35 (589/611)48,7980/7979/7972/7973/SQ0/1/8655/SK1300/1310

NIFS/BK7/N-SF6/N-SSK/SBL7/Zerodur/CaF2/SIC,et

Main Cooperation Materials Manufacturers:

CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC

Main Export Countries & Areas: Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.

Raytekoptics Extra value added services offered:

1). Optical workcraft & process solution design;

2). Rough processing raw materials;

3). Semi finishing raw materials;

4). Fabricate custom sizes and shapes;

5). Design and supply custom coatings;

6). Modify and resurface customer supplied materials;

7). Drill holes, notch glass and provide beveled substrates;

8). Precision polish optics with non-standard aspect ratios;

Payment Method: by T/T or Western Union.

Delivery time: 7-10 days.

Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with “3R” policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
