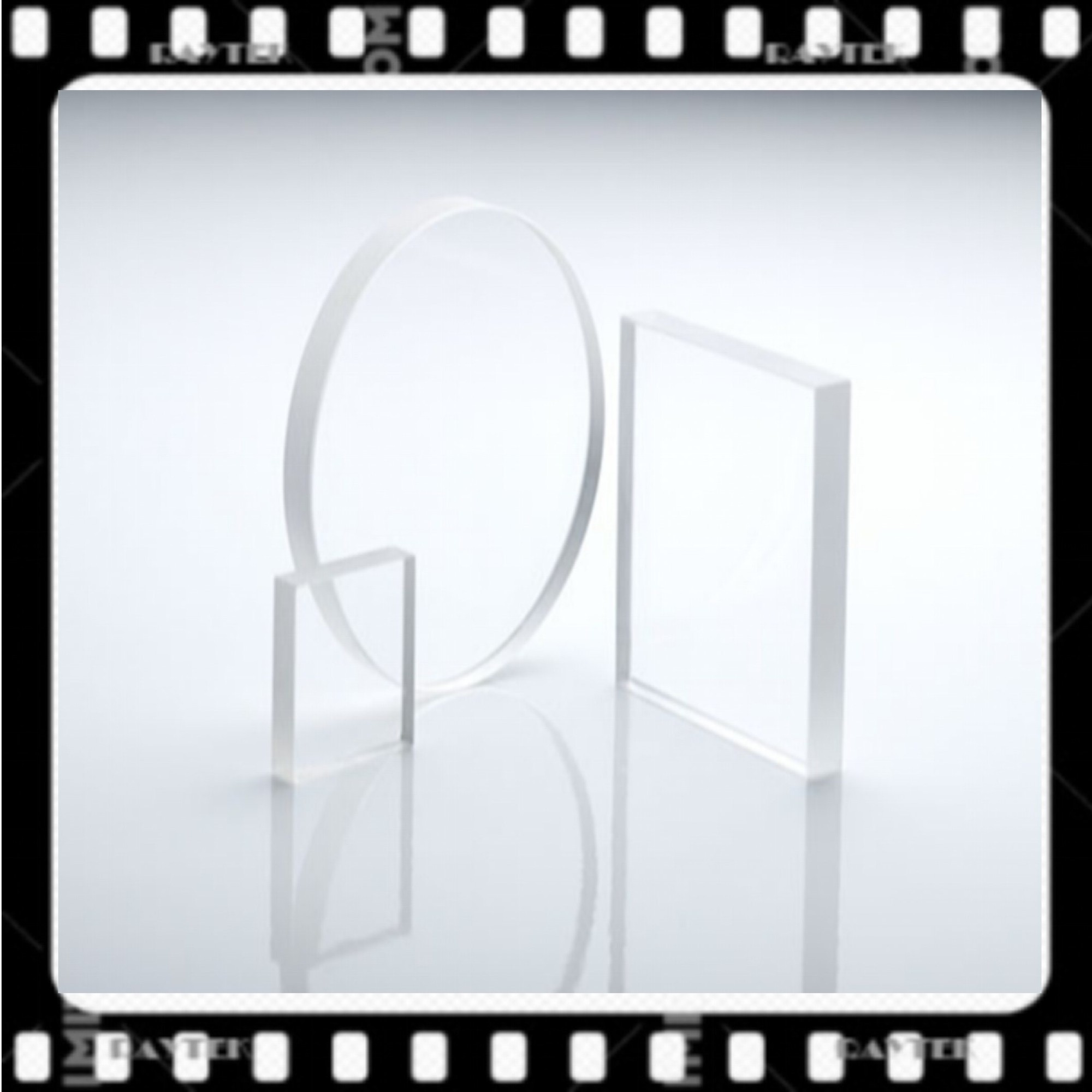

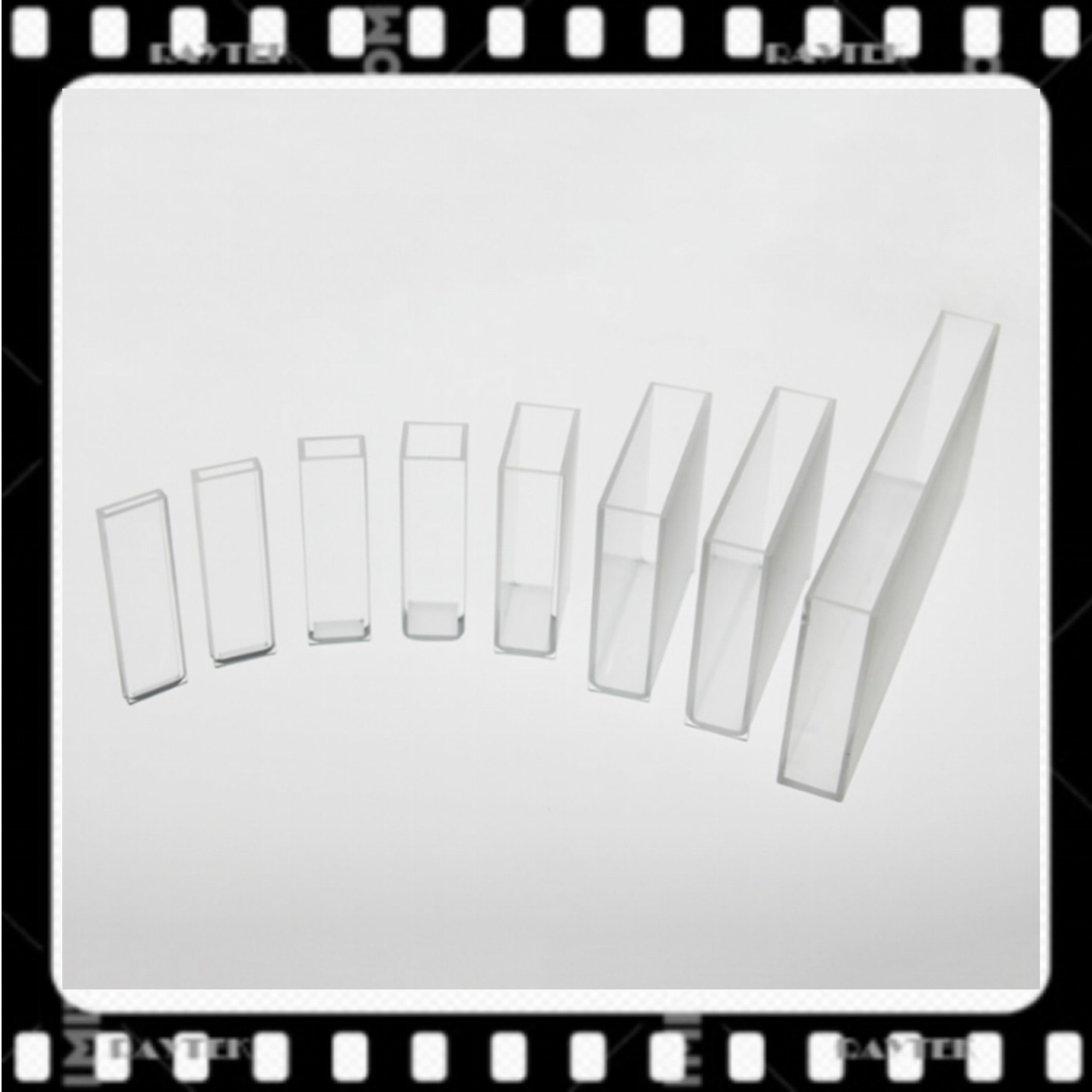

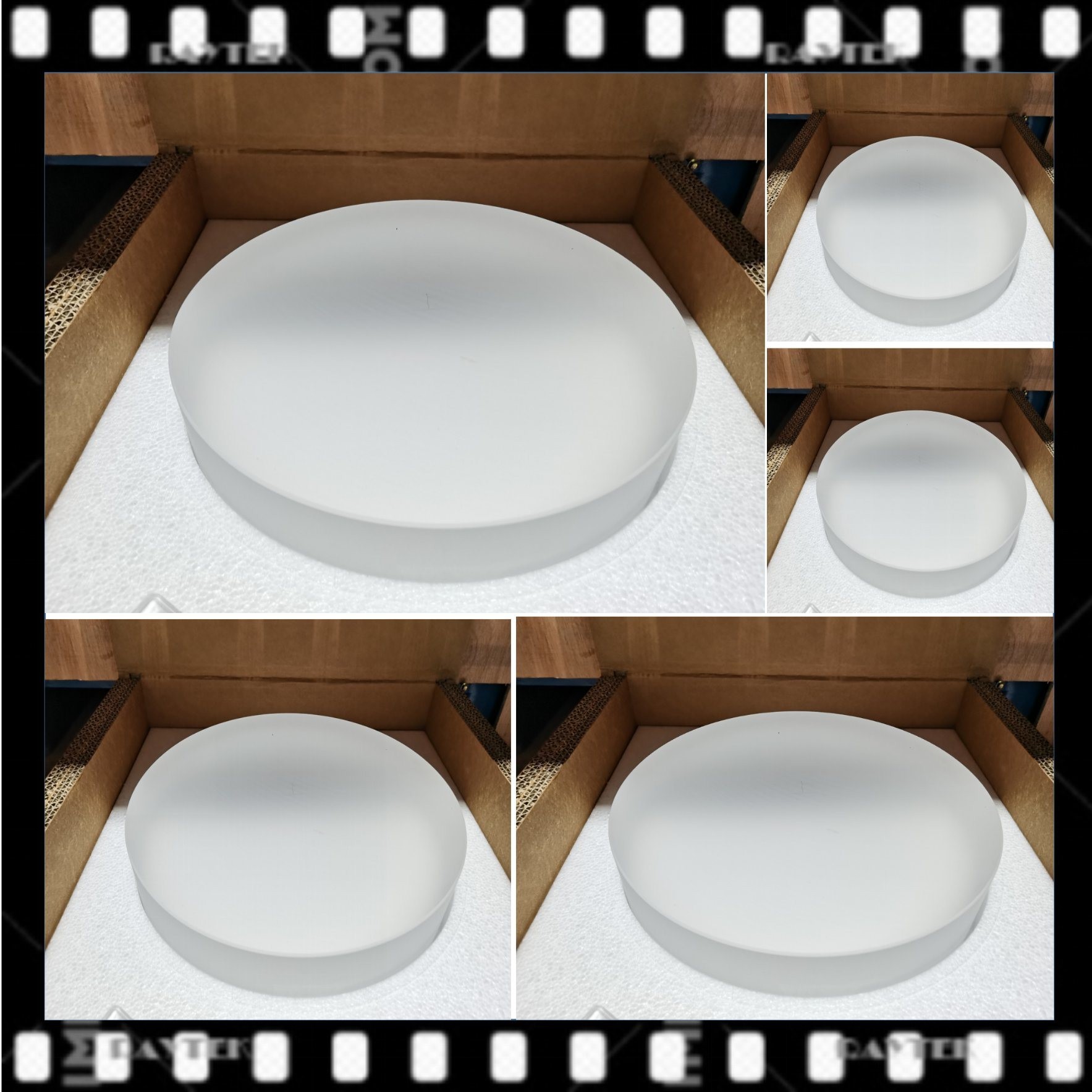

Corning 8655 Fused Silica Glass

  • Product Item : RT20220428001#
  • Category: Materials
  • Type: Corning Optical Substrate
  • Substrate: Corning 8655 Hpfs
  • Oh Content [Ppm]: Less Than 1
  • Strain Point: 1068 Celsuis Degrees
  • Product description:Corning 8655 Fused Silica Glass/Corning 8655 Optical Glass/Hpfs Fused Silica 8655/Corning Quartz
  • INQUIRY
General Introduction: Corning 8655 are high purity, noncrystalline silica glasses that combine a very low thermal expansion coefficient with excellent optical qualities and exceptional transmittance. Characteristics include homogeneity, low birefringence and outstanding transmittance in the DUV, UV, visible, and infrared ranges.
Corning HPFS Fused Silica glasses are known throughout the industry for their consistent, repeatable performance. We offer many different grades of fused silica to support various product applications. Glass codes 8655 is high purity non-crystalline silica glasses with excellent optical qualities. Product characteristics include extraordinarily low refractive index variations leading to state-of-the-art homogeneity values, low birefringence values, large size capabilities, exceptional transmittance from the deep ultraviolet through the infrared region, and an ultra-low thermal expansion coefficient; all of which are critical to our customers demanding needs

Products Name: Corning 8655 Fused Silica Glass
Alias: HPFS Fused Silica 8655,Corning 8655, Corning 8655 ArF Grade, Corning 8655 fused silica, Corning 8655 fused silica glass, HPFS Corning 8655 fused silica, Corning 8655 semiconductor, 8655 Corning, 8655 Corning glass, Corning 8655 glass, 8655 Corning fused silica,etc

Optical and Thermal Properties:
Glass Code: 8655 Viscosity
Softening Point* 1627 ˚C 107.6 poises
Annealing Point* 1180 ˚C 1013 poises
Strain Point* 1068 ˚C 1014.5 poises
Specific Heat 0.770 J/(g K)
Thermal Conductivity 1.38 W/(m K)
Thermal Diffusivity 0.0075 cm2/s
Thermal Expansion** (ppm/C):
5 ˚C to 35 ˚C 0.52 x 10-6
0 ˚C to 200 ˚C 0.57 x 10-6
-100 ˚C to +200 ˚C 0.48 x 10-6
ASTM Procedures - *C-598, **E-228
Internal Transmittance 8655 Meets high Ti ≥ 99.75 %/cm @193 nm
Typical initial absorption k: ≤ 0.0005 ppm/cm at 193 nm.

Mechanical Properties:
Unless otherwise stated, all values @ 25 °C
Elastic (Young's) Modulus 73 GPa
Shear Modulus 31 GPa
Modulus of Rupture, abraded 52.4 MPa
Bulk Modulus 35.9 GPa
Poisson's Ratio 0.16
Density 2.20 g/cm3
Knoop Hardness (100g load) 522 kg/mm2
Tensile Strength 54 MPa
Compressive Strength 1.14 GPa

HPFS Data and Properties:
Grade 8655 ArF Grade;
Inclusion Class 0, 1, 2
Homogeneity Grade AA, A, C, F
Birefringence
Lower specifications
available upon request[nm/cm]
≤ 1

Striae ISO 10110-4 Class 5
Metallic Impurities [ppb] < 10
OH Content [ppm] < 1

Main Applying Fields:
Applying Fields: Application of microlithography
Lithography lens,
Photomask substrate
Deep ultraviolet laser element
Optical standard parts
Excimer laser optics
Lithographic optics
Beam transmission element
Light guide
Laser fusion
Application of various aerospace technologies
*****

Matching Custom Manufacturing Serivce:
Including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
Matching processing equipments;
1).Single side lapping and polishing machines
2).Duble sided polishing machines
3).Ring throwing machines
4).DMG five-axis five-linkage spherical milling machine
5).DMG ultrasonic machining center
6).Super large scale gantry cnc machining center (2.0*2.0m)
7).Super large scale surface grinder (1.6m*1.6m)
8).CNC cutting machines
9).Thin plate cleaning machines
10).Ultrasonic trough cleaning machines
11).Plane interferometers
12).Two dimensional detectors
13).Ion beam polishing machines
14).Magnetorheological polishing equipments

Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC

Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
