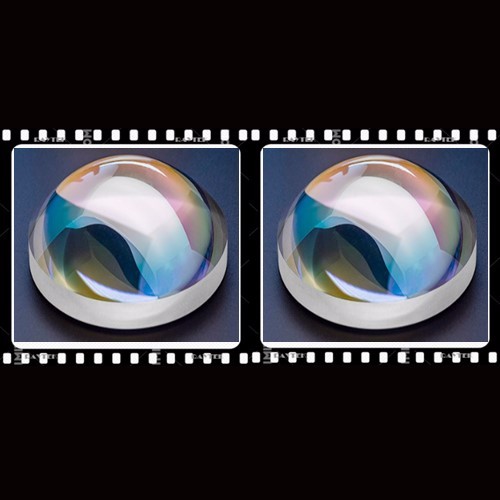

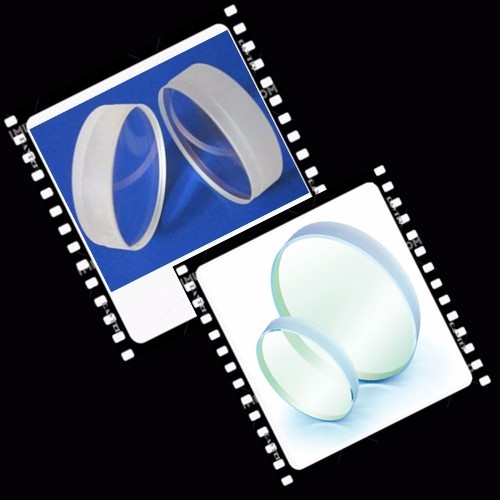

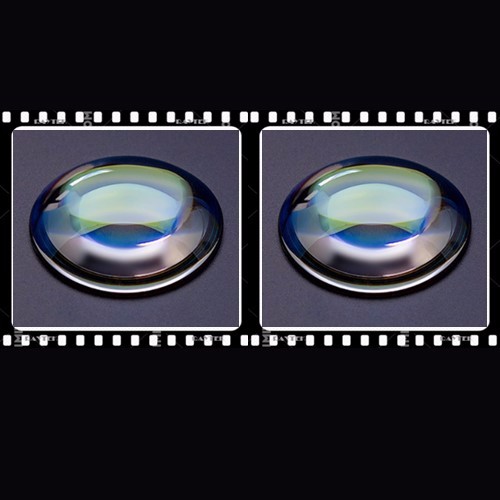

MgF2 Visible Coated N-BK7 Plano-Convex Lenses

General Introduction: Raytek's 400-700 nm n-bk7 precision planoconvex lens is polished with a master test plate to achieve strict tolerances, thus ensuring minimal wavefront distortion to meet harsh laser focusing applications. They have our MgF 2 broadband antireflection coatings, which are suitable for 400 to 700 nm applications

N-BK7 is an excellent lens material for most visible and near infrared applications. It is the most common borosilicate optical crown glass, which can provide excellent performance and moderate price. Because of its high uniformity, low content of bubbles and inclusions, and easy manufacture, it has become an excellent choice for transmission optical elements. N-BK7 is also relatively hard and has good scratch resistance. The transmission range of BK 7 is 380 to 2100 nm. It is not recommended for temperature sensitive applications such as precision mirrors

Products Name: MgF2 Visible Antireflection Coated N-BK7 Plano-Convex Lenses

Alias: MgF2 Visible Antireflection Coated N-BK7 Plano-Convex Lenses,MgF2 coated Plano-convex lens, MgF2 Visible Coated Plano-convex Lens, MgF2 N-BK7 Plano-convex lens, MgF2 coated Lens,etc

Main Applying: Laser electro-optic focusing application scenarios,Laser applying, laser protection, laser windows, laser protective windows, laser defense windows,etc

Products Highlights:

Our precision planoconvex lenses are polished to a strict tolerance to minimize pre wavelet distortion. Strict surface quality tolerance minimizes scattering and unnecessary diffraction effects. These lenses have a surface quality of 40-20 scratch pitting and a surface power with an accuracy of 1.5λ.

MgF 2 visible antireflection film：

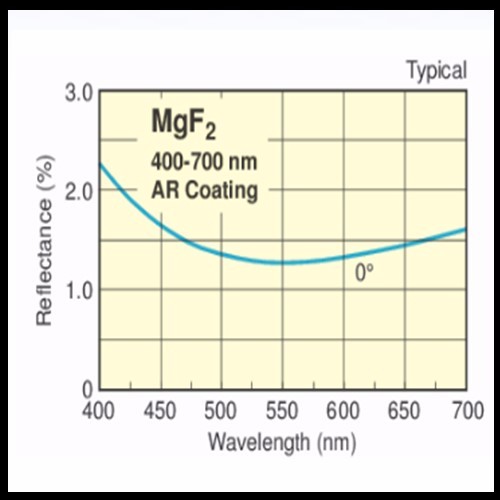

Raytek's single-layer MgF 2 visible antireflection film is the most common choice, which provides a very wide wavelength range at a reasonable price. It is the standard configuration of achromatic lens, and can be selected on our flat convex spherical lens and cylindrical lens based on n-bk7. Compared with the uncoated surface, the performance of MgF2 is significantly improved by reducing the reflectivity to less than 1.5%. It is very effective in a wide wavelength range (400 nm to 700 nm) with incident angle less than 15℃

1).400-700 nm MgF 2 antireflective coatings

2).n-bk7 substrate with 40-20 or 60-40 dots

3).Flat convex shape suitable for focusing

4).Standard focal length suitable for various lens sizes

5).Matching with ROHS Certification

6).High precision & high surface roughness;

7).Sizes can be customized as per the customers’ request

8).Quick lead time and delivery time.

9).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.

10).Excellent post-sale quality warranty, with “3R”-return, replace & refund policy

Main Tech Specification:

Main Cooperation Materials Manufacturers:

CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC

Main Export Countries & Areas: Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.

Raytekoptics Extra value added services offered:

1). Optical workcraft & process solution design;

2). Rough processing raw materials;

3). Semi finishing raw materials;

4). Fabricate custom sizes and shapes;

5). Design and supply custom coatings;

6). Modify and resurface customer supplied materials;

7). Drill holes, notch glass and provide beveled substrates;

8). Precision polish optics with non-standard aspect ratios;

Payment Method: by T/T or Western Union.

Delivery time: 7-10 days.

Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with “3R” policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
