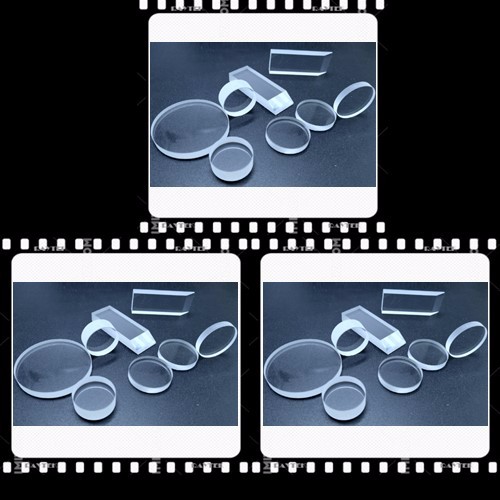

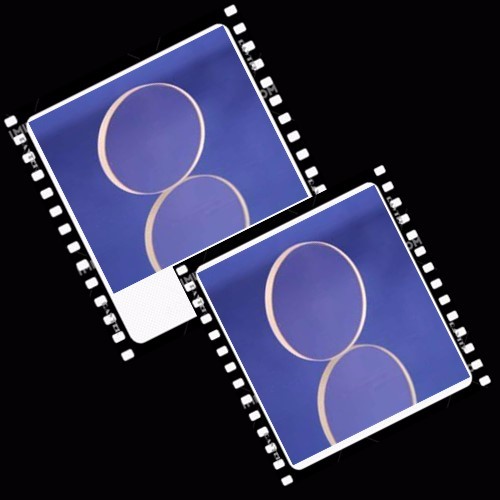

Magnesium Fluoride(MgF2) Optical Windows

General Introduction: The Raytek Magnesium Fluoride optical window is transparent in a wide spectral range of 120nm to 8uM. Magnesium fluoride has durability, heat resistance and mechanical shock resistance, and has high laser damage threshold..

Since MgF 2 has the lowest refractive index in all optical glasses, the antireflective coating does not need to have low surface reflectance. Therefore, the window is not limited to the spectral band of broadband antireflective film, and can be used at any wavelength from deep ultraviolet to infrared (120nm - 8μm). This is ideal for applications requiring simultaneous transparency at multiple wavelengths, such as spectral or fluorescent imaging of samples in vacuum. Due to the transparency of deep UV, the window can also be used in excimer laser applications

Products Name: Magnesium Fluoride(MgF2) Optical Windows

Alias: Magnesium Fluoride(MgF2) Optical Windows, Magnesium Fluoride optical windows, Magnesium Fluoride windows, Magnesium Fluoride infrared Windows, Magnesium Fluoride IR windows, MgF2 Windows, MgF2 optical Windows, MgF2 infrared window,etc

Lens Substrates:

Magnesium Fluoride(MgF2)

Coating:

Uncoated

Main Applying:

Products Highlights:

1).High heat resistance and mechanical impact resistance

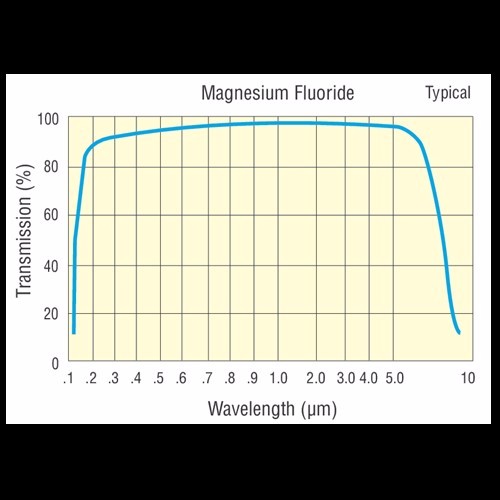

2).High transmittance, ranging from 120 nm to 8um

3).Arc second parallelism < 30

4).Chemical resistance

5).Even the surface reflectivity of the uncoated surface is very low

6).Different grades materials for option.

7).High precision & high surface roughness;

8).Sizes can be customized as per the customers’ request

9).Quick lead time and delivery time.

10).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.

11).Excellent post-sale quality warranty, with “3R”-return, replace & refund policy

Main Optical Tech Specification:

Popular Physical Size Specification:

Main Cooperation Materials Manufacturers:

CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC

Main Export Countries & Areas:

Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.

Raytekoptics Extra value added services offered:

1). Optical workcraft & process solution design;

2). Rough processing raw materials;

3). Semi finishing raw materials;

4). Fabricate custom sizes and shapes;

5). Design and supply custom coatings;

6). Modify and resurface customer supplied materials;

7). Drill holes, notch glass and provide beveled substrates;

8). Precision polish optics with non-standard aspect ratios;

Payment Method: by T/T or Western Union.

Delivery time: 7-10 days.

Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with “3R” policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
