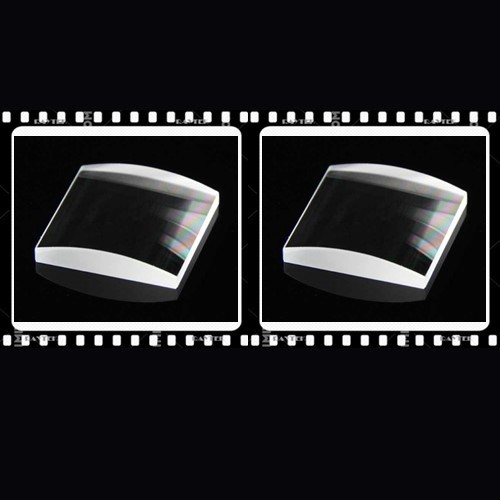

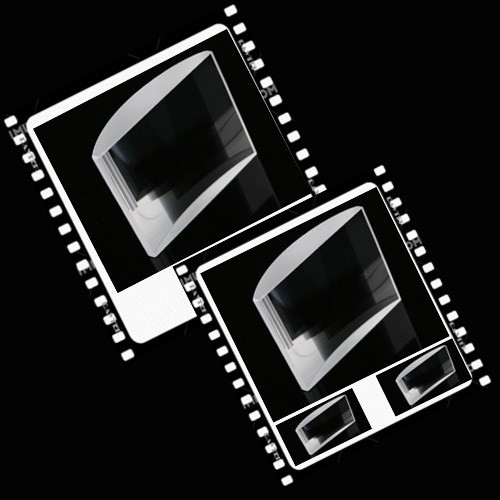

Plano-Convex Cylindrical Lens

Product Item : RT20220415001#
Category：
Substrate: N-Bk7 Optical Glass or Equivalent N-Bk7
Coating: Ar.14, Ar.16, Ar.18, Ar.33 Coated
Surface Flatness: Lambda/2-Lambda/4 or Custom Manufacturing
Effective Focal Length(Efl): From +6.4mm to +300mm
Product description：N-Bk7 Plano-Convex Cylindrical Lens/N-Bk7 Cylindrical Lens/Plano-Convex Cylindrical Lens
INQUIRY

General Introduction: N-bk7 cylindrical lens is made of fine annealed glass and has a variety of shapes, both coated and uncoated. The rectangular, flat convex and flat concave cylindrical lenses reach the maximum on the Y-axis and x-axis, respectively λ/ 2 and λ/ It has 40-20 scratch pitting surface quality, and can be plated with a variety of multilayer anti reflective coatings. The circular Plano convex cylindrical lens has a scratch pitting surface quality of 60-40, which can be coated with a single layer of MgF 2 antireflective coating. N-bk7 is an excellent lens material for most visible and near infrared applications. It has high homogeneity, low content of bubbles and inclusions, simple and direct manufacture, and can provide excellent performance with economic cost..

Products Name: N-BK7 Plano-Convex Cylindrical Lenses
Alias: N-BK7 Plano-Convex Cylindrical Lenses,N-BK7 Plano-Convex Cylindrical Lenses, Optical Convex lens, N-BK7 optical convex lens, Visible N-BK7 Plano-Convex Cylindrical Lens, Visible Plano-Convex Cylindrical lens, IR Plano-Convex Cylindrical lens, NIR Plano-Convex Cylindrical lens, 1064nm Plano-Convex Cylindrical lens, Uncoated Plano-Convex Cylindrical lens,Cylindrical convex lens ,etc

Lens Substrates:
Grade A N-BK7

Optional I:	Grade A N-BK7 from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC
Optional II:	Equivalent Grade A N-BK7 Made in China, C-laser own brands

Coating Type:

Coating Code:	Coating Type	Wavelength Range
AR.14	Visible Multilayer	430-700 nm
AR.16	NIR Multilayer	650-1000 nm
AR.18	IR Multilayer	1000-1550 nm
AR.33	Laser Line V-Coat Multilayer	1064 nm
-	Uncoated

Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC

Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
