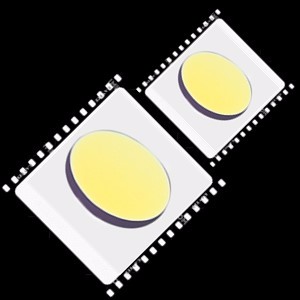

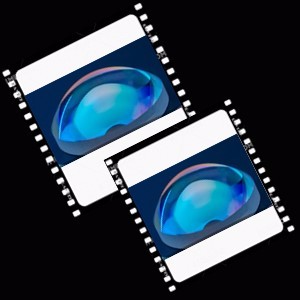

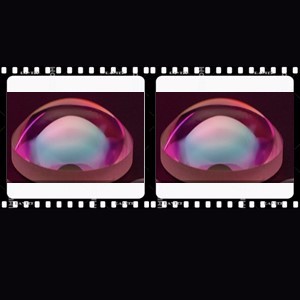

UV Coated UV Fused Silica Plano-Convex Lens

General Introduction: Raytek's 245-440 nm antireflection coating of UV grade fused silica Plano convex lens is used to meet the stringent requirements of laser electro-optic focusing. These lenses are polished using the master test plate to achieve tight tolerances, ensuring minimal wavefront distortion. Its strict surface quality tolerance minimizes scattering and harmful diffraction effects.



Products Name: UV Antireflection Coated UV Fused Silica Plano-Convex Lens

Alias: UV Coated UV Fused Silica Plano-Convex Lens, UV Fused Silica Plano-Convex Lens, UV Fused Silica Lens, UV Coated Plano-Convex Lens,UV AR Coated Lens, UV lens, UV Plano-convex lens,etc



Lens Substrates:

UV fused silica substrate for UV region, laser line and wide band applications

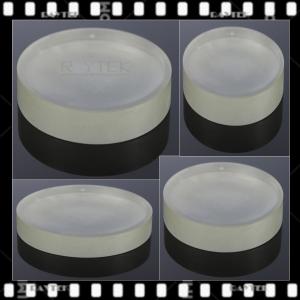

UV fused silica is a synthetic amorphous silica with high purity, which can provide the maximum transmission from 195 nm to 2100 nm. The amorphous and colorless quartz glass has very low thermal expansion coefficient, good optical properties and excellent transmittance in the ultraviolet region. The transmittance and uniformity are higher than that of crystal quartz, and there is no inherent orientation and temperature instability of crystal form. It does not fluoresce under ultraviolet light and is radiation resistant. For high energy applications, the high purity of fused silica eliminates the micro defects that may cause laser damage. For more information, please refer to the summary of optical materials technology.es

Optional I:	UV fused silica from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC
Optional II:	Equivalent UV fused silica Made in China, C-laser own brands



UV Antireflective Film

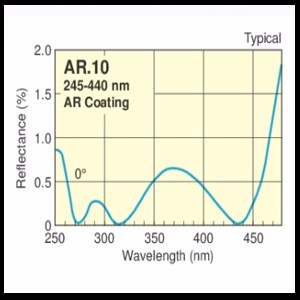

Raytek AR.10 broadband multilayer antireflective film can significantly improve the transmission efficiency of UV Lens in the ultraviolet band of 245 to 440 nm.



Main Applying:

Applying Fields I:	Laser electrooptic focusing
Applying Fields II:	Collimating laser beam for laser equipment Collimating the optical fiber output
Appling Fields III:	Other



Products Highlights:

1).245-440 nm antireflective coatings

2).UV grade fused silica substrate

3).Surface irregularity<=λ/8, scratch-dig is 20-10

4).Standard focal length suitable for various lens sizes

5).Different grades materials for option.

6).High precision & high surface roughness;

7).Sizes can be customized as per the customers’ request

8).Quick lead time and delivery time.

9).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.

10).Excellent post-sale quality warranty, with “3R”-return, replace & refund policy



Main Optical Tech Specification:

Lens Shape	Plano-Convex	Surface Accuracy Irregularity	λ/8
Lens Material	UV Fused Silica	Surface Accuracy, Power	1.5 λ
Antireflection Coating	245-440 nm	Chamfers	0–0.8 mm face width
Coating Type	UV Multilayer	Chamfers Angle/Tolerance	45° ±15°, typical
Coating Code	AR.10	Focal Length Tolerance	±1 %
Damage Threshold	2 J/cm2, 10 nsec pulses, 10 Hz at 355 nm	Diameter Tolerance	+0/-0.1 mm
Surface Quality	20-10 scratch-dig	Clear Aperture	≥central 90% of diameter
Surface Flatness	λ/8	OEM/ODM	Accepted



Main Physical Size Specification:

Products Code	Diameters	EFL	AR.film Wavelength
RT01030801	6.35mm	12.7mm	245-440 nm
RT01030802	12.7mm	16.0mm	245-440 nm
RT01030803	12.7mm	19.0mm	245-440 nm
RT01030804	12.7mm	25.4mm	245-440 nm
RT01030805	12.7mm	38.1mm	245-440 nm
RT01030806	12.7mm	50.2mm	245-440 nm
RT01030807	12.7mm	75.6mm	245-440 nm
RT01030808	12.7mm	25.4mm	245-440 nm
RT01030809	25.4mm	33.0mm	245-440 nm
RT010308010	25.4mm	38.1mm	245-440 nm
RT010308011	25.4mm	50.2mm	245-440 nm
RT010308012	25.4mm	62.9mm	245-440 nm
RT010308013	25.4mm	75.6mm	245-440 nm
RT010308014	25.4mm	88.3mm	245-440 nm
RT010308015	25.4mm	100mm	245-440 nm
RT010308016	25.4mm	125mm	245-440 nm
RT010308017	25.4mm	150mm	245-440 nm
RT010308018	25.4mm	175mm	245-440 nm
RT010308019	25.4mm	200mm	245-440 nm
RT010308020	25.4mm	350mm	245-440 nm
RT010308021	25.4mm	500mm	245-440 nm
RT010308022	25.4mm	750mm	245-440 nm
RT010308023	25.4mm	1000mm	245-440 nm
RT010308024	50.8mm	200mm	245-440 nm
RT010308025	50.8mm	250mm	245-440 nm
RT010308026	50.8mm	300mm	245-440 nm
RT010308027	50.8mm	500mm	245-440 nm
	Custom	Custom	Custom





Other Available Lens Substrates:

UV fused quartz,Molded glass,Fused silicon glass,N-BK7,K9,K7,B270,D-LAK,D-ZK3,D-ZLaF52LA18

D-ZLaF52La9,ECO5508,L-BAL 35 (589/611)48,7980/7979/7972/7973/SQ0/1/8655/SK1300/1310

NIFS/BK7/N-SF6/N-SSK/SBL7/Zerodur/CaF2/SIC,et



Main Cooperation Materials Manufacturers:

CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC

Main Export Countries & Areas: Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.



Raytekoptics Extra value added services offered:

1). Optical workcraft & process solution design;

2). Rough processing raw materials;

3). Semi finishing raw materials;

4). Fabricate custom sizes and shapes;

5). Design and supply custom coatings;

6). Modify and resurface customer supplied materials;

7). Drill holes, notch glass and provide beveled substrates;

8). Precision polish optics with non-standard aspect ratios;



Payment Method: by T/T or Western Union.

Delivery time: 7-10 days.

Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with “3R” policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
