Home Standard Bandpass Filters
| Optional I: |
Optical glass from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
| Optional II: |
Equivalent Optical glass Made in China, C-laser own brands |
Main Characters:

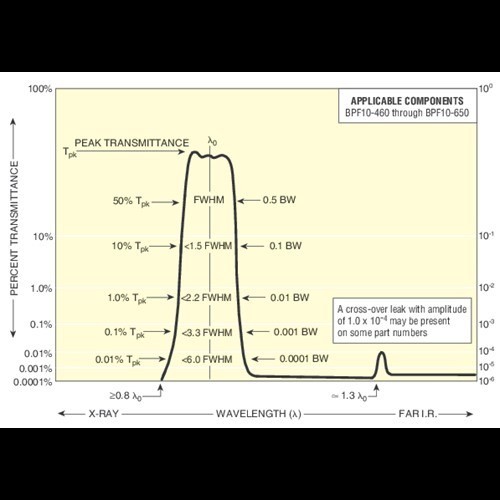

1).Out-of-band blocking to less than 0.01% (10-4)
2).Center wavelengths available from 310 nm to 900 nm
3).Excellent temperature stability
4).25.4 mm diameter and 50.8mm square sizes
5).Superior lifetime in harsh environmental conditions
Main Optical Tech Specification:
Tech Data
Description
Type
Bandpass Filter
Surface Quality
80-50 scratch-dig
Clear Aperture
20.2 mm
Temperature Range
-50 to 100°C
Wavelength Shift with Temperature
0.01 to 0.02 nm/°C
Humidity Resistance
Per MIL-STD-810E, method 507.3, procedure III, modified to 5 cycles
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
