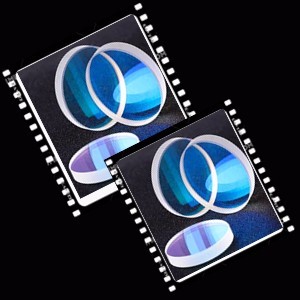

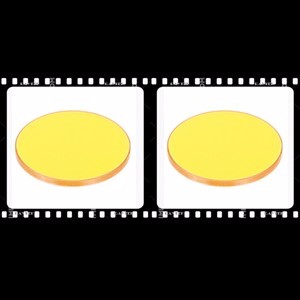

IR N-BK7 Plano-Convex Lenses

General Introduction: Raytek's 1000-1550 nm n-bk7 precision planoconvex lens is polished with a master test board to achieve strict tolerances, thus ensuring minimal wavefront distortion to meet the demanding laser electro-optic focusing application scenarios. They have AR.18 broadband antireflective coatings for 1000 to 1550 nm applications

N-BK7 is an excellent lens material for most visible and near infrared applications. It is the most common borosilicate optical crown glass, which can provide excellent performance and moderate price. Because of its high uniformity, low content of bubbles and inclusions, and easy manufacture, it has become an excellent choice for transmission optical elements. N-BK7 is also relatively hard and has good scratch resistance. The transmission range of BK 7 is 380 to 2100 nm. It is not recommended for temperature sensitive applications such as precision mirrors

Products Name: IR N-BK7 Plano-Convex Lenses

Alias: IR N-BK7 Plano-Convex Lenses, IR N-BK7 Plano-Convex Lenses, Infared N-BK7 Plano-Convex Lenses, IR Plano-Convex Lenses, IR Plano-Convex Lenses, Infared Plano-Convex Lenses,etc

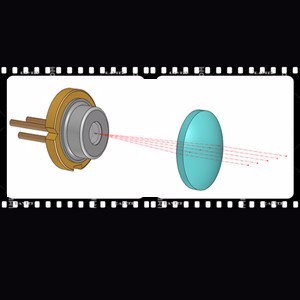

Main Applying: Laser electro-optic focusing application scenarios.

Products Highlights:

Our precision planoconvex lenses are polished to a strict tolerance to minimize pre wavelet distortion. Strict surface quality tolerance minimizes scattering and unnecessary diffraction effects. These lenses have a surface quality of 40-20 scratch pitting and a surface power with an accuracy of 1.5λ.

1).1000-1550 nm antireflective coatings

2).High performance n-bk7 substrate with 40-20 dot

3).Flat convex shape suitable for focusing

4).Standard focal length suitable for various lens sizes

5).Matching with ROHS Certification

6).High precision & high surface roughness;

7).Sizes can be customized as per the customers’ request

8).Quick lead time and delivery time.

9).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.

10).Excellent post-sale quality warranty, with “3R”-return, replace & refund policy

Main Tech Specification:

Main Cooperation Materials Manufacturers:

CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC

Main Export Countries & Areas: Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.

Raytekoptics Extra value added services offered:

1). Optical workcraft & process solution design;

2). Rough processing raw materials;

3). Semi finishing raw materials;

4). Fabricate custom sizes and shapes;

5). Design and supply custom coatings;

6). Modify and resurface customer supplied materials;

7). Drill holes, notch glass and provide beveled substrates;

8). Precision polish optics with non-standard aspect ratios;

Payment Method: by T/T or Western Union.

Delivery time: 7-10 days.

Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with “3R” policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
